Product details

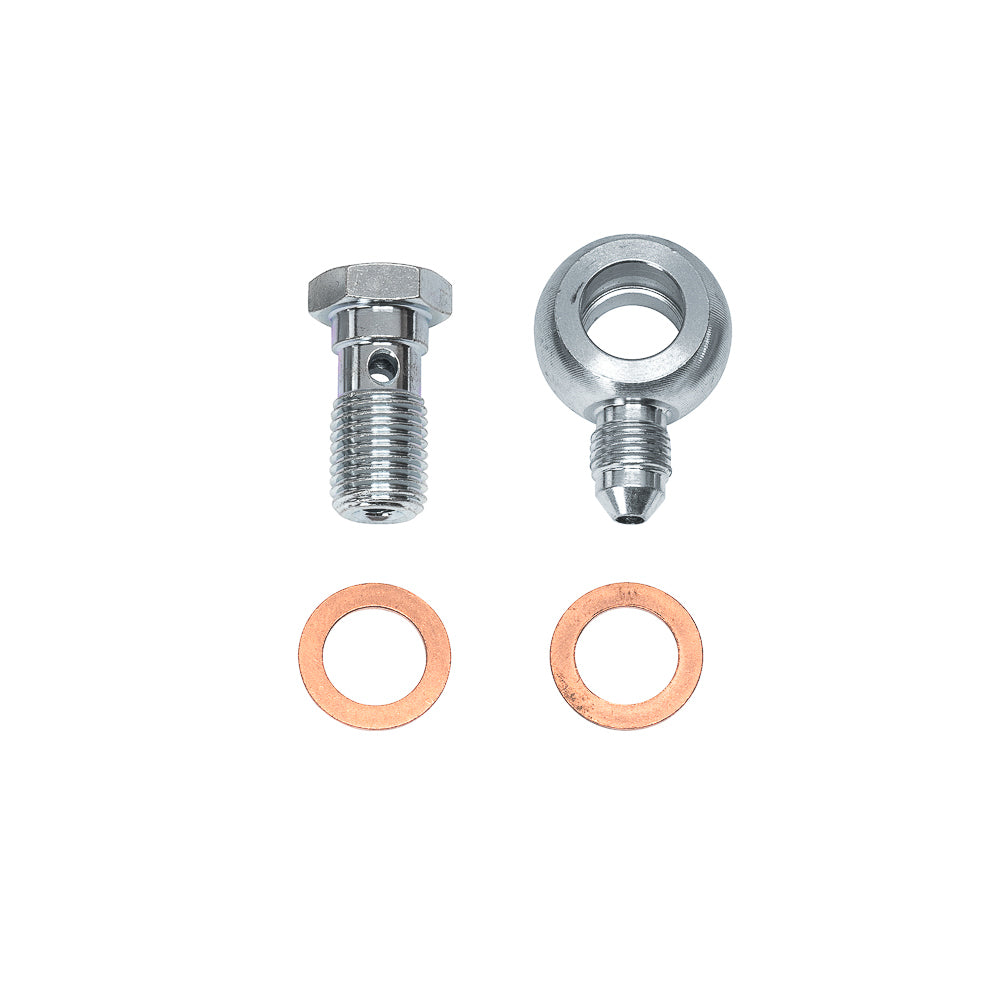

A straight -3 banjo eye and imperial bolt make up this Wilwood D52 inlet assembly. The 7/16-20 bolt is 0.94 inch long and is supplied with two crush washers for the banjo sealing faces. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.
Technical Details
- Manufacturer part number: 220-17775
- Component: Caliper Inlet Fitting
- Hose-side size: -3
- Caliper adapter angle: Banjo 0°
- Caliper connection: 7/16-20
- Banjo bolt length: 0.94 inch
- Package quantity: 1
- Listed weight: 0.150 lb
Fitment & Compatibility
Use the assembly only with the specified D52 inlet and adequate bolt engagement. Check the hose angle against nearby suspension parts, and do not substitute the similarly shaped M10 x 1.5 D154 bolt.
