Wilwood D154 Caliper Banjo Inlet Kit, M10 x 1.5 Bolt with -3 Hose Fitting

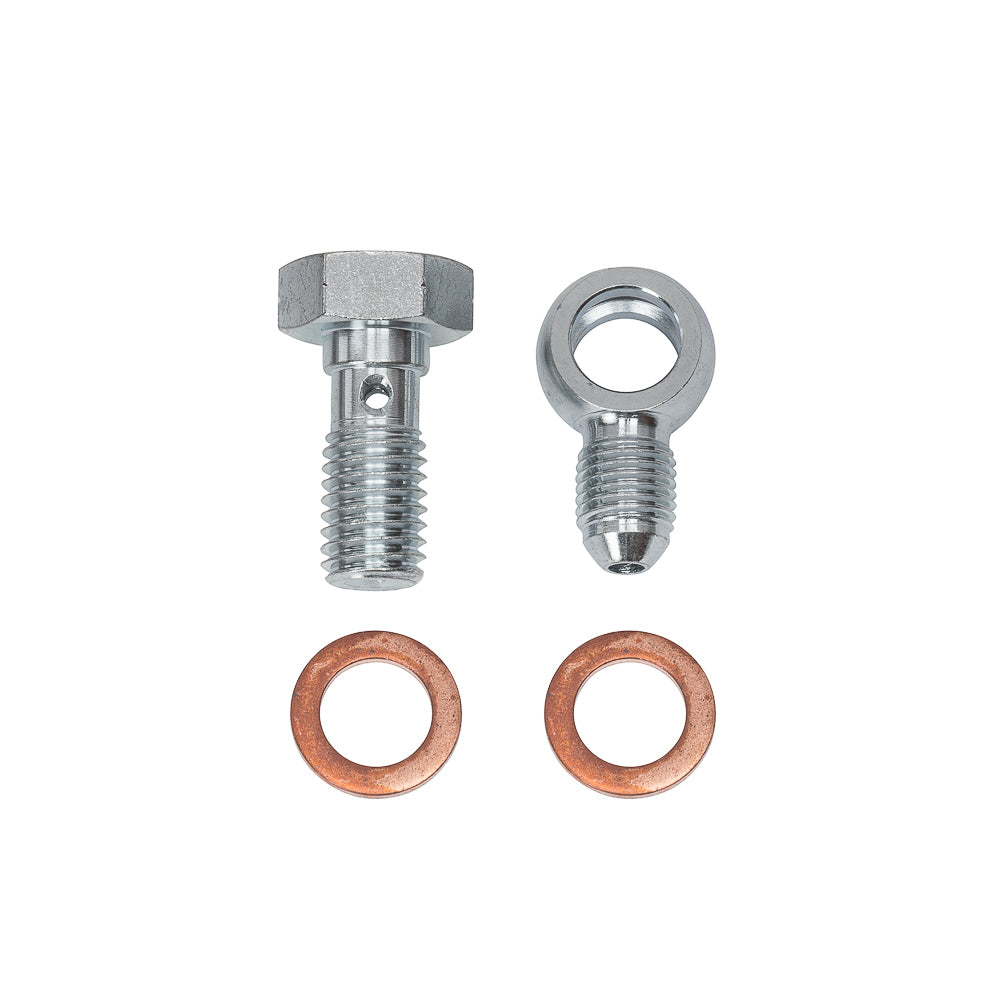

This Wilwood inlet kit provides the metric banjo connection for a specified D154 caliper. One straight banjo eye, one 24 mm-long M10 x 1.5 bolt and two crush washers form the caliper-side hose junction. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer part number: 220-17774
• Component: Caliper Inlet Fitting
• Hose-side size: -3
• Caliper adapter angle: Banjo 0°
• Caliper connection: 10mm-1.50
• Banjo bolt length: 24 mm
• Package quantity: 1
• Listed weight: 0.150 lb

Fitment & Compatibility

Confirm the installed caliper is the D154 configuration with this inlet thread and bolt engagement. The longer metric bolt is not interchangeable with the imperial D52 banjo hardware, even when both use a -3 hose fitting.
