Product details

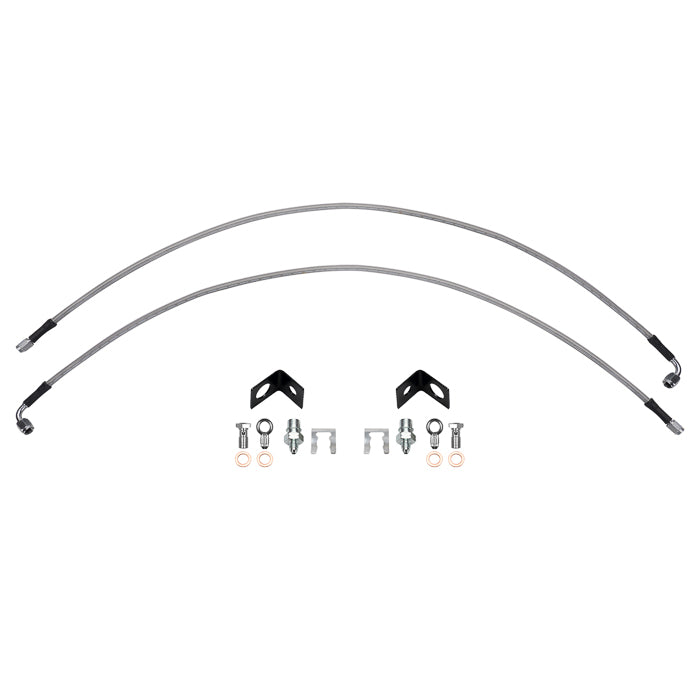

Long braided flexlines connect the specified Talon 1000R front conversion to the chassis plumbing. The Wilwood set uses 10 mm banjo eyes at the caliper connection and M10 x 1 bubble-flare chassis adapters. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.
Technical Details
- Manufacturer part number: 220-17626
- Component: Brake flexline and fitting kit
- Hose length (inches): 33.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: Banjo, 0 degrees
- Caliper connection: 10mm Banjo
- Caliper adapter reference: 220-10416
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.100 lb
Fitment & Compatibility
Match the 2019–2022 Honda Talon 1000R brake package and its banjo bolt specification. Check hose retention at full steering lock and throughout suspension travel; the 33-inch length alone does not establish fitment to another Talon model.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
