Product details

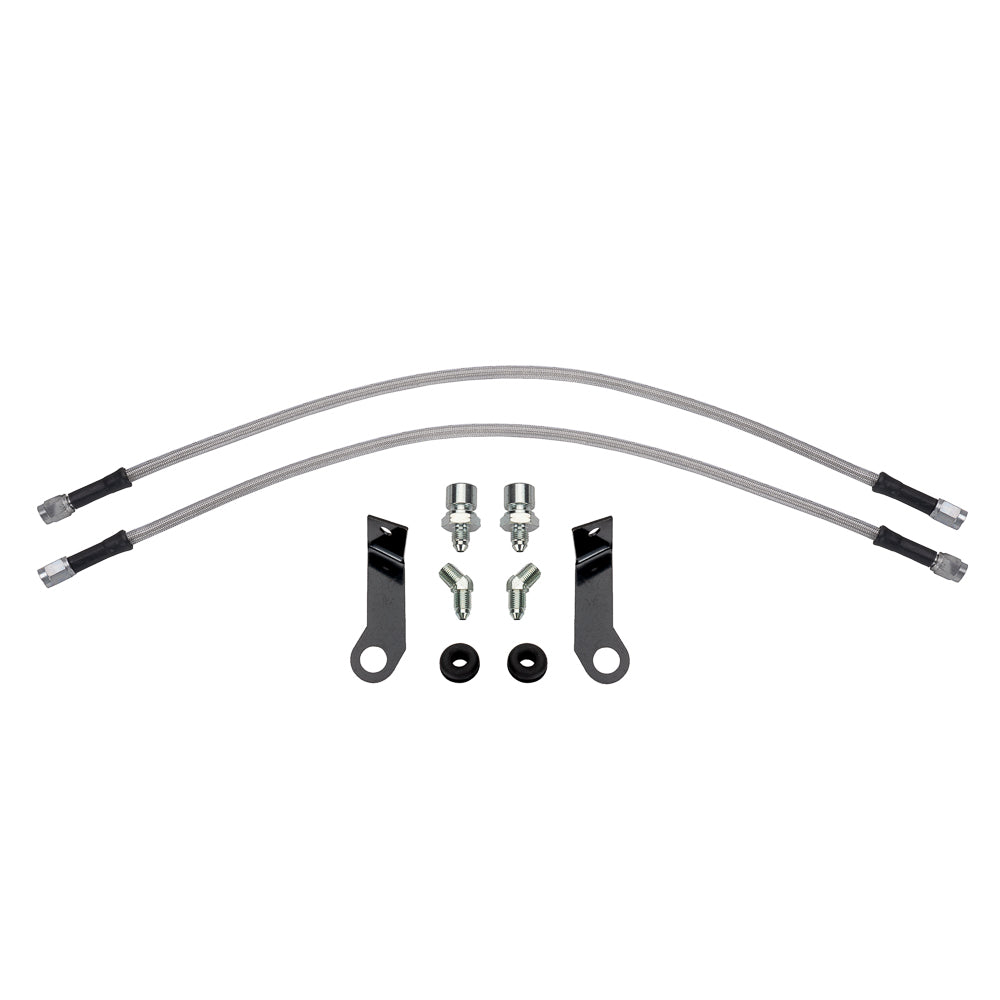

This Ranger front hose package adds mounting brackets to support the chassis ends of the flexlines. Wilwood combines 22-inch straight-ended hoses with M10 x 1.5 inverted-flare adapters and 45-degree caliper fittings. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer part number: 220-17600
- Component: Brake flexline and fitting kit
- Hose length (inches): 22.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1.5 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-13923
- Line support reference: 250-9141
- Hose quantity: 2
Fitment & Compatibility
The product identity specifies the 2019-onward Ford Ranger front conversion. Confirm the exact brake kit, bracket attachment and suspension clearance rather than treating the same thread size as proof of compatibility with another Ranger generation.
Manufacturer Documents
PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
