Product details

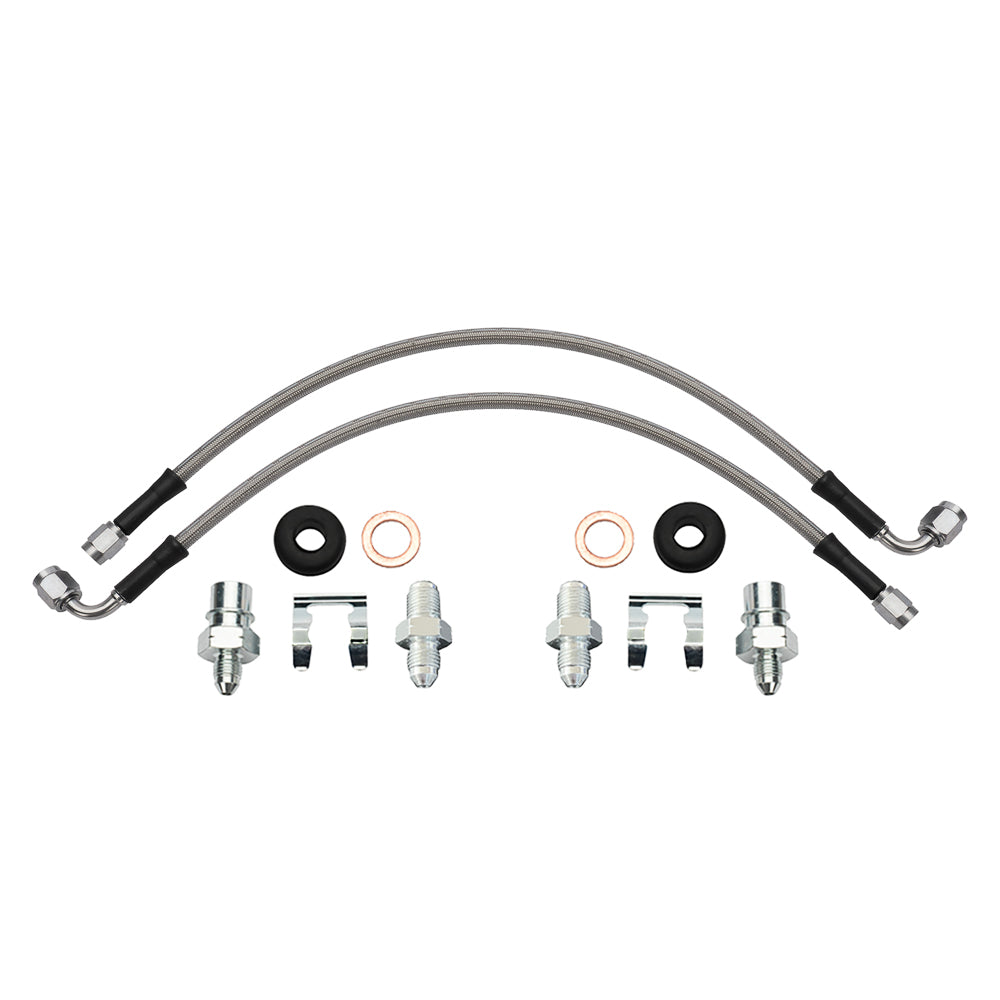

Connect the matching Wilwood D31 rear brake conversion to your Porsche’s brake lines with this 16-inch braided hose arrangement. Select it by the installed Wilwood kit number, not by vehicle model alone.
For the specified Wilwood calipers. This is a conversion hose and fitting arrangement; do not treat it as a direct replacement for an original-caliper hose kit.
Before ordering: Contact PMB to confirm the supplied adapters, hose connections and package count for your installed rear brake kit.
Matched brake kits
| Position | Rear |
|---|---|
| Wilwood conversion family | D31 |
| Kit references | 140-17655 / 140-17656 |
| 140-17655 | 1969–1983 classic 911 rear D31 conversion, 20 mm rotor |
|---|---|
| 140-17656 | 1984–1989 classic 911 rear D31 conversion, 24 mm rotor |
Both kits require 3.00-inch rear caliper mounts. Confirm the installed kit and hose ends. A 1989 Carrera 4 row in the application list is not a general 964 fitment claim.
Hose and fitting details
| Part number | 220-17551 |
|---|---|
| Nominal hose length | 16 inches |
| Hose size | -3 |
| Hose ends | Female -3 connections |
| Hose-end angles | Straight inlet; 90-degree outlet |
| Chassis adapter | -3 to M10 × 1 bubble flare |
| Caliper connection | Straight M10 × 1.00 caliper adapters; confirm supplied hardware |
| Package quantity | Confirm package count before ordering |
Installation check
Confirm both mating fittings, hose routing and retaining clips before installation. The line must have clearance from the wheel and suspension and remain free of tension through the full steering and suspension travel. Have a qualified brake installer follow the instructions for the exact conversion.
Documents and fitment help
DS1580 installation instructions (opens in a new tab)
Unsure which conversion hose your Porsche needs? Contact PMB Performance with the model year, installed brake parts and clear photos so we can help check the match before you order.
