Product details

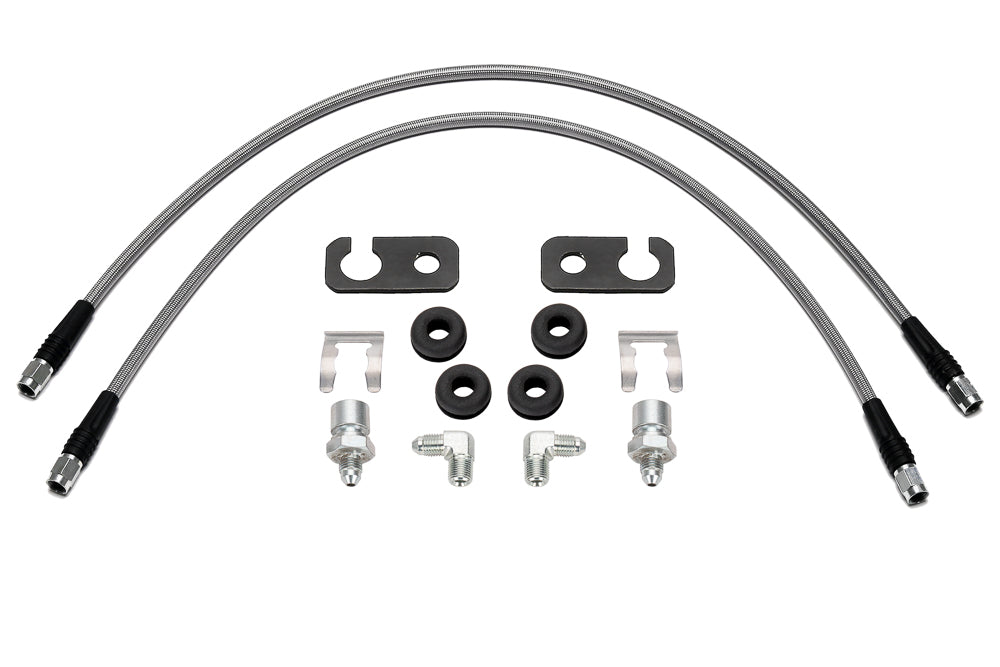

Wilwood supplies these 25-inch front flexlines for the LC300 and Tundra conversion layout identified with the 2022 application. Mounting brackets support the chassis adapters, while separate elbows connect the hoses to NPT caliper ports. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 220-17529
- Component: Brake flexline and fitting kit
- Hose length (inches): 25.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 0.950 lb
Fitment & Compatibility
Verify the specific Toyota Land Cruiser LC300 or Tundra brake kit, model year and M10 x 1 inverted-flare chassis connection. A shared hose package does not make all factory calipers or later vehicle configurations interchangeable.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
