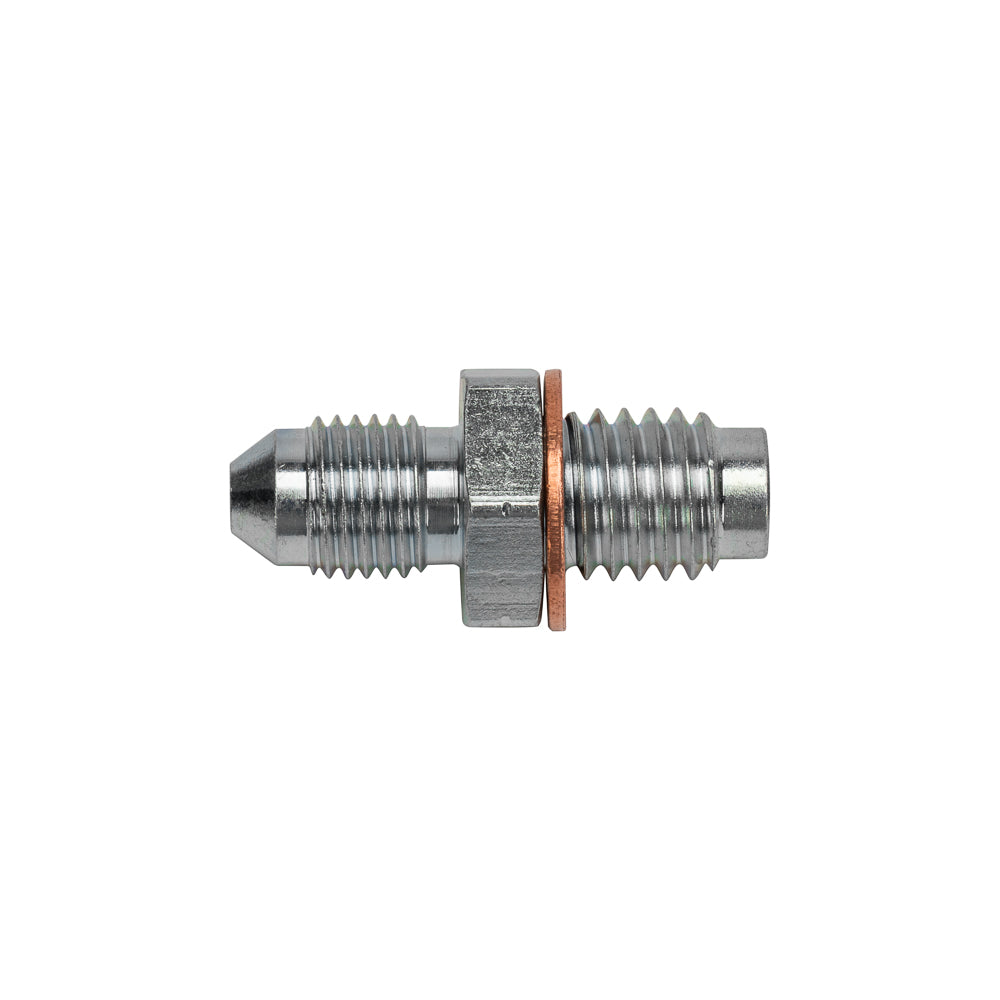

Wilwood Straight GM Metric Caliper Inlet Adapter, -3 to M10 x 1.5 with Crush Washer

This straight Wilwood adapter screws into the specified iron GM Metric caliper and presents a male -3 hose connection. The included crush washer seals the caliper-side interface. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer part number: 220-17471
• Component: Caliper Inlet Fitting
• Hose-side size: -3
• Caliper adapter angle: Straight
• Caliper connection: 10mm-1.50
• Package quantity: 1

Fitment & Compatibility

Confirm that the caliper has an M10 x 1.5 inlet and the correct flat sealing surface. Similar-looking GM calipers can use different inlet arrangements, so neither vehicle model nor the phrase GM Metric alone establishes compatibility.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide

PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
