Product details

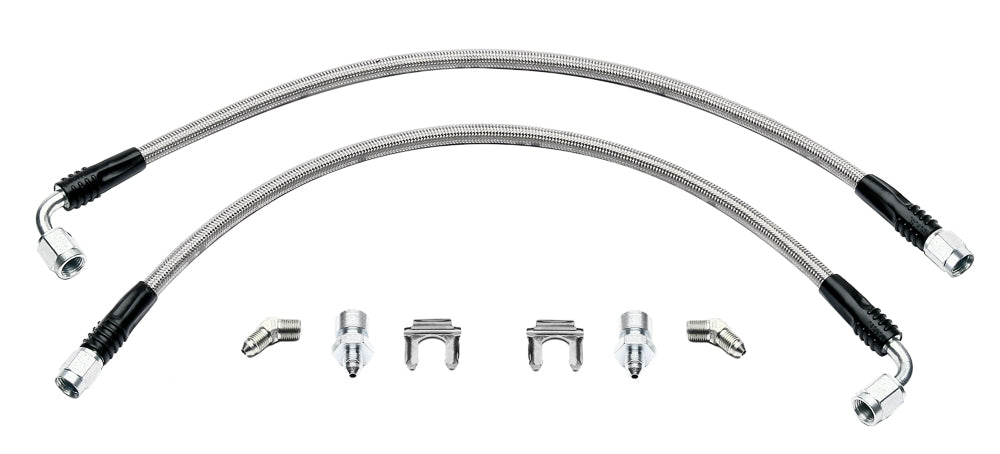

For the Ram 1500 TRX front conversion, Wilwood supplies 20-inch hoses with angled outlets. Alternate M10 x 1 and M12 x 1 chassis adapters let the installer match the actual inverted-flare hard-line connection. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. Its work includes the design and manufacture of disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component choice must suit the complete brake system, including its intended use and mating hardware.
Technical Details
- Manufacturer part number: 220-17390
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: M10 x 1 inverted flare or M12 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-15042/220-17469
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.100 lb
Fitment & Compatibility
The kit note names the TRX application from 2021 onward with 16-inch rotors. Verify the complete brake kit and both chassis interfaces; the 20-inch specification is distinct from the shorter hose set used in other Ram front conversions.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
