Product details
Connect the matching Wilwood Superlite rear brake conversion to your Porsche’s brake lines with this 14-inch braided hose arrangement. Select it by the installed Wilwood kit number, not by vehicle model alone.
For the specified Wilwood calipers. This is a conversion hose and fitting arrangement; do not treat it as a direct replacement for an original-caliper hose kit.
Matched brake kits
| Position | Rear |
|---|---|
| Wilwood conversion family | Superlite |
| Kit references | 140-17101 |
| 911 Carrera | 1999–2008 and 2009–2012 |
|---|---|
| 911 Carrera 4 | 1999–2008 |
| 911 Targa | 2002–2005 |
| 911 Targa 4 | 2007–2008 |
For a 2012 car, confirm the specified 997 brake arrangement; this listing does not establish 991 compatibility.
These are the current vehicle applications for rear kit 140-17101. Its list does not include Boxster or Cayman. Confirm the installed rear conversion and factory spindle arrangement.

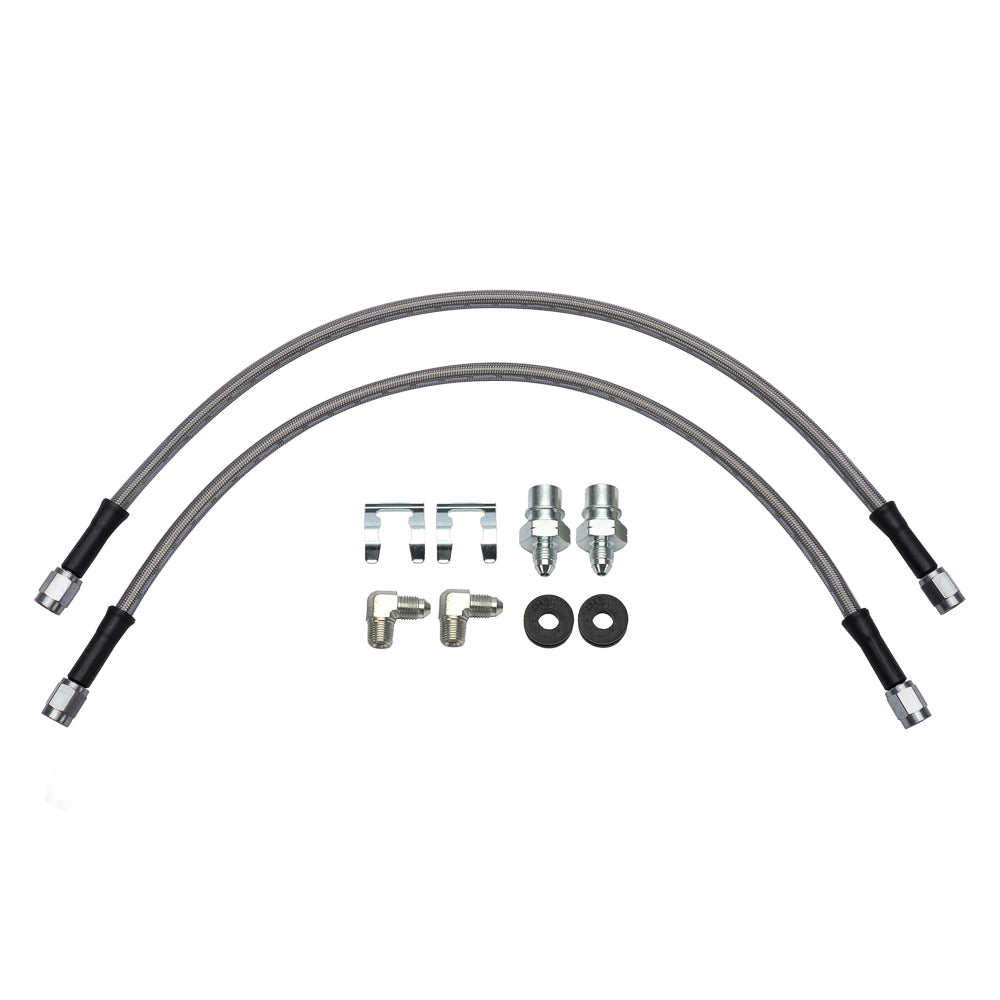

Hose and fitting details
| Part number | 220-17385 |
|---|---|
| Nominal hose length | 14 inches |
| Hose size | -3 |
| Hose ends | Female -3 connections |
| Hose-end angles | Straight inlet and outlet |
| Chassis adapter | -3 to M10 × 1 bubble flare |
| Caliper connection | 90-degree 1/8-27 NPT caliper adapters |
| Package quantity | Two hoses |
Installation check
Confirm both mating fittings, hose routing and retaining clips before installation. The line must have clearance from the wheel and suspension and remain free of tension through the full steering and suspension travel. Have a qualified brake installer follow the instructions for the exact conversion.
Documents and fitment help
DS1557 installation instructions (opens in a new tab)
Unsure which conversion hose your Porsche needs? Contact PMB Performance with the model year, installed brake parts and clear photos so we can help check the match before you order.
