Product details
Connect the matching Wilwood AERO6 front brake conversion to your Porsche’s brake lines with this 22-inch braided hose arrangement. Select it by the installed Wilwood kit number, not by vehicle model alone.
For the specified Wilwood calipers. This is a conversion hose and fitting arrangement; do not treat it as a direct replacement for an original-caliper hose kit.
Matched brake kits
| Position | Front |
|---|---|
| Wilwood conversion family | AERO6 |
| Kit references | 140-17100 |
Current 140-17100 applications are listed below. They require the specified factory spindle and matching AERO6 conversion. Ceramic-brake exclusions must be checked against the actual car.
| 911 Carrera / Carrera 4 | 1999–2008 |
|---|---|
| 911 Targa | 2002–2005 |
| 911 Targa 4 | 2007–2008 |
| Boxster Base | 1999–2012 |
| Boxster Roadster / Roadster S | 2000–2003 |
| Boxster S | 2001–2007; 2008–2012 without ceramic brakes |
| Boxster S Special Edition | 2004 |
| Boxster Limited Edition | 2008 |
| Boxster RS 60 Spyder / S Limited Edition | 2008, without ceramic brakes |
| Boxster S Porsche Design 2 | 2008–2009, without ceramic brakes |
| Boxster Spyder | 2011–2012, without ceramic brakes |
| Boxster S Black Edition | 2012, without ceramic brakes |
| Cayman Base | 2007–2012 |
| Cayman S | 2006–2012, without ceramic brakes |
| Cayman S Porsche Design | 2008, without ceramic brakes |
| Cayman R | 2012, without ceramic brakes |

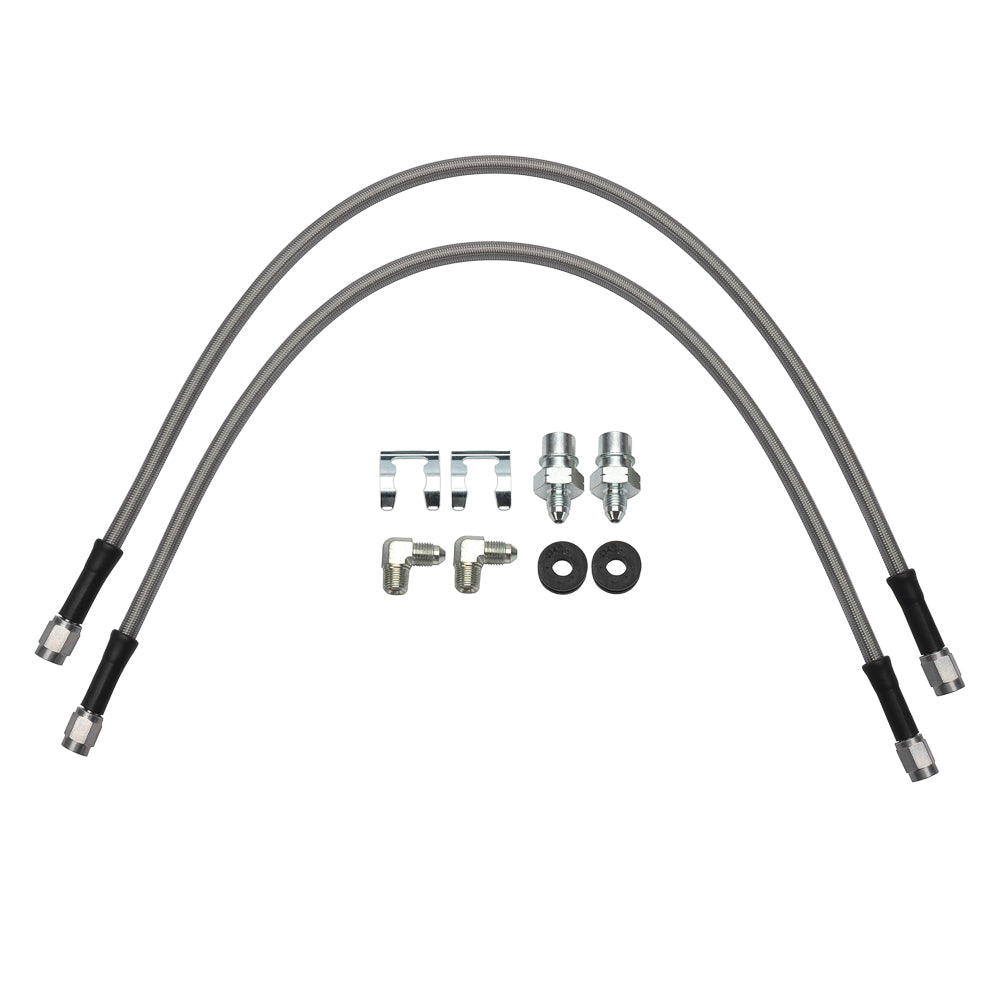

Hose and fitting details
| Part number | 220-17382 |
|---|---|
| Nominal hose length | 22 inches |
| Hose size | -3 |
| Hose ends | Female -3 connections |
| Hose-end angles | Straight inlet and outlet |
| Chassis adapter | -3 to M10 × 1 bubble flare |
| Caliper connection | 90-degree 1/8-27 NPT caliper adapters |
| Package quantity | Two hoses |
Installation check
Confirm both mating fittings, hose routing and retaining clips before installation. The line must have clearance from the wheel and suspension and remain free of tension through the full steering and suspension travel. Have a qualified brake installer follow the instructions for the exact conversion.
Documents and fitment help
DS1556 installation instructions (opens in a new tab)
Unsure which conversion hose your Porsche needs? Contact PMB Performance with the model year, installed brake parts and clear photos so we can help check the match before you order.
