Wilwood Front Conversion Brake Hose Kit for Toyota 4Runner (2015–2024) / Lexus GX460 (2015–2023), 14-Inch Lines

SKU: 220-17300

$81.26

Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Product details

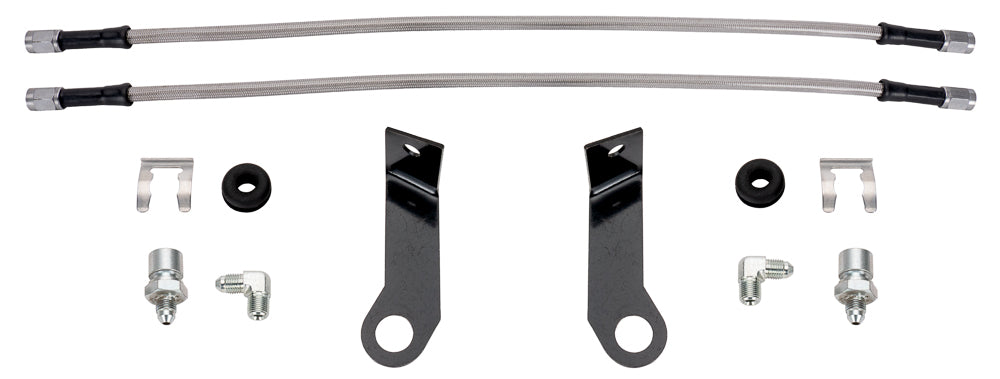

This front AERO6-DM hose package serves matched Toyota 4Runner and Lexus GX460 brake conversions. Its 14-inch -3 hoses and paired brackets join M10 x 1 inverted-flare hard lines to 90-degree NPT caliper adapters. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.

Technical Details

Manufacturer part number: 220-17300
Component: Brake flexline and fitting kit
Hose length (inches): 14.00
Line or fitting size: -3
Chassis adapter connection: -3 to M10 x 1 inverted flare
Hose inlet connection: -3 Female
Hose inlet angle: Straight
Hose outlet connection: -3 Female
Hose outlet angle: Straight
Caliper adapter angle: 90 Degree
Caliper connection: 1/8-27 NPT
Caliper adapter reference: 220-13125
Chassis adapter reference: 220-6413
Chassis retaining clip reference: 300-15780
Line support reference: 250-9142 / 250-9143
Hose quantity: 2
Listed weight: 0.990 lb

Fitment & Compatibility

Installation sheet DS1551 identifies this hose for front conversion 140-17284. The hose page retains its earlier 2015–2021 4Runner range, while the current exact kit application page lists 4Runner Limited, SR5 and TRD Pro 2015–2024; Base 2018–2021; SR5 Premium 2018–2024; Trail 2015–2023; TRD Off-Road 2017–2024; TRD Off-Road Premium 2018–2024; TRD Sport 2022–2024; Nightshade and Venture 2021–2022; and the 2023 40th Anniversary Edition. Lexus GX460 coverage is Base, Luxury and Premium 2015–2023, plus the 2023 Black Line Edition. These are conversion-kit applications on factory spindles, not a claim of factory-caliper hose replacement.

Manufacturer Documents

With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
