Product details

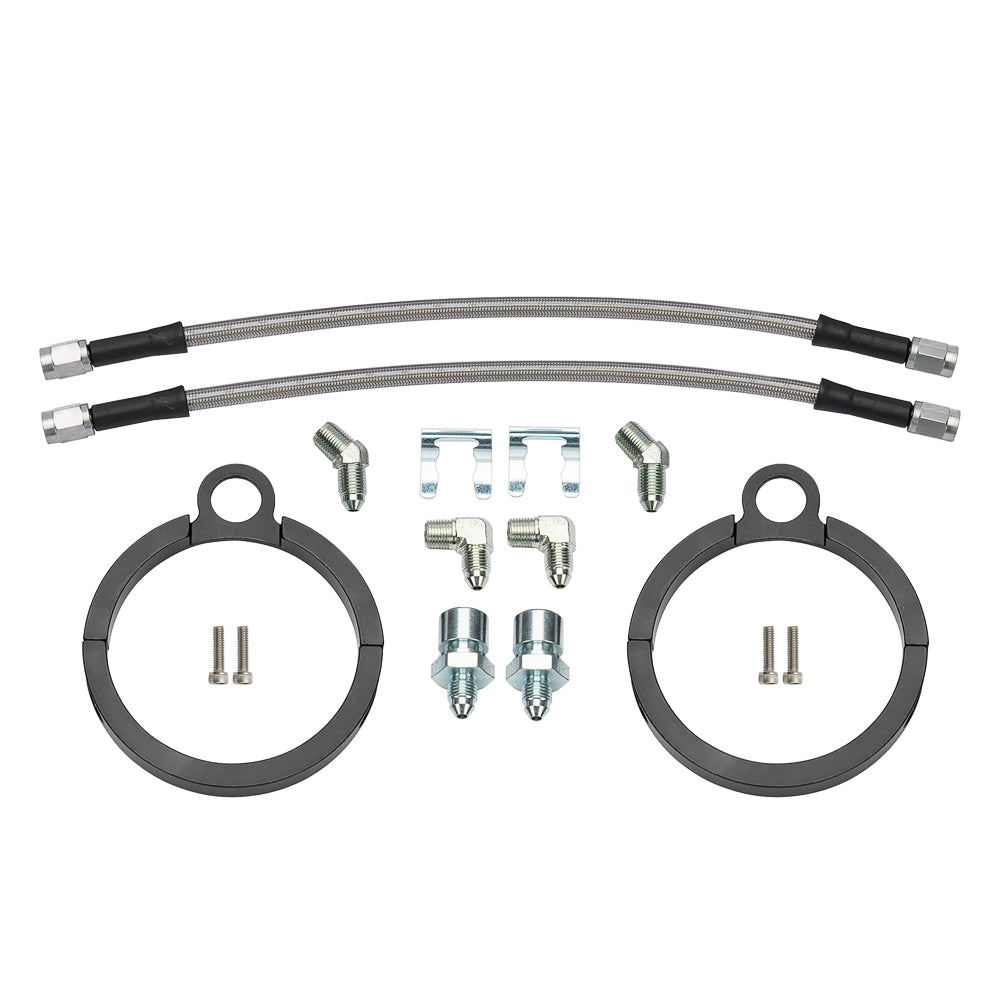

This Wilwood kit holds the brake-line junctions with clamps around the axle tubes. It includes 12-inch flexlines and 90-degree NPT caliper fittings, allowing the bracket arrangement to be selected separately from a welded-tab installation. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.
Technical Details
- Manufacturer part number: 220-17289
- Component: Axle brake hose kit with clamp-on brackets
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-17021
- Hose quantity: 2
- Listed weight: 0.990 lb
Fitment & Compatibility
Measure the axle tubes for the specified 3.00-inch clamp size and verify unobstructed clamp placement. The hard-line adapters accept 3/8-24 inverted-flare connections; check suspension travel and clearance around both the clamps and caliper elbows.
