Product details

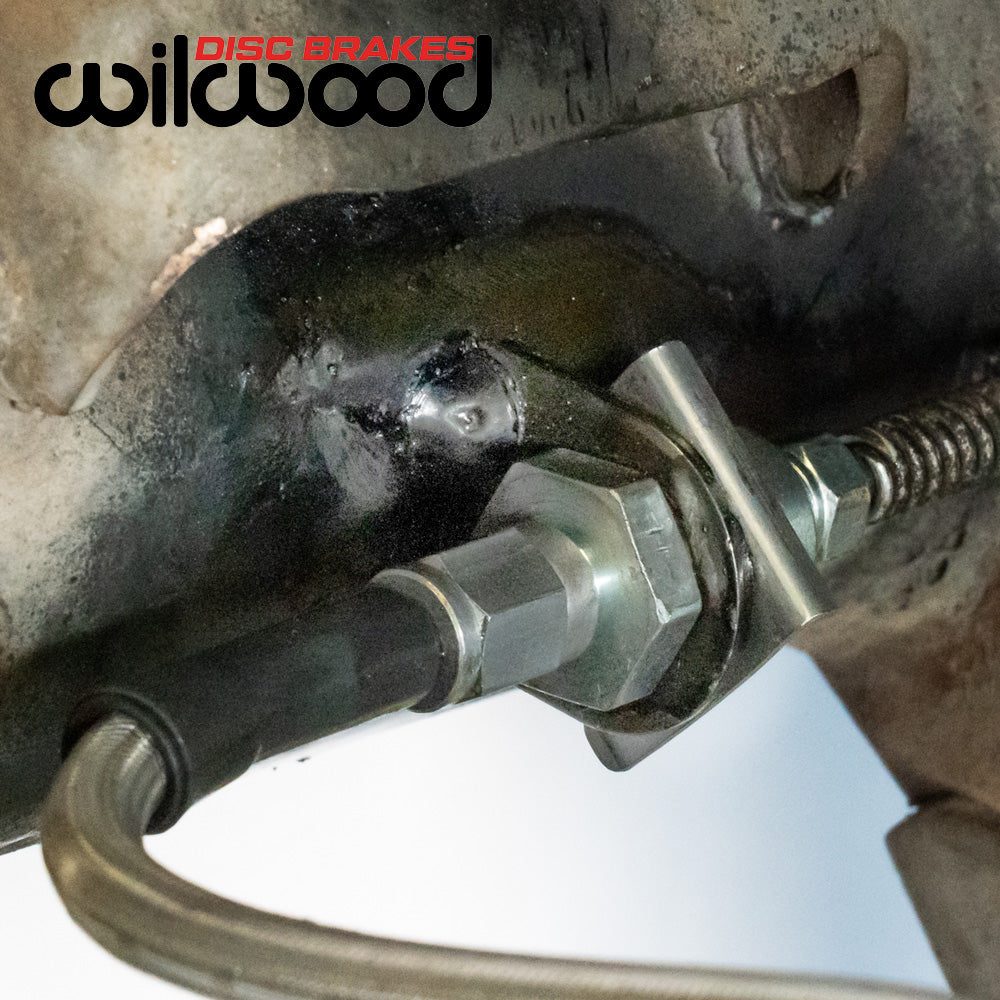

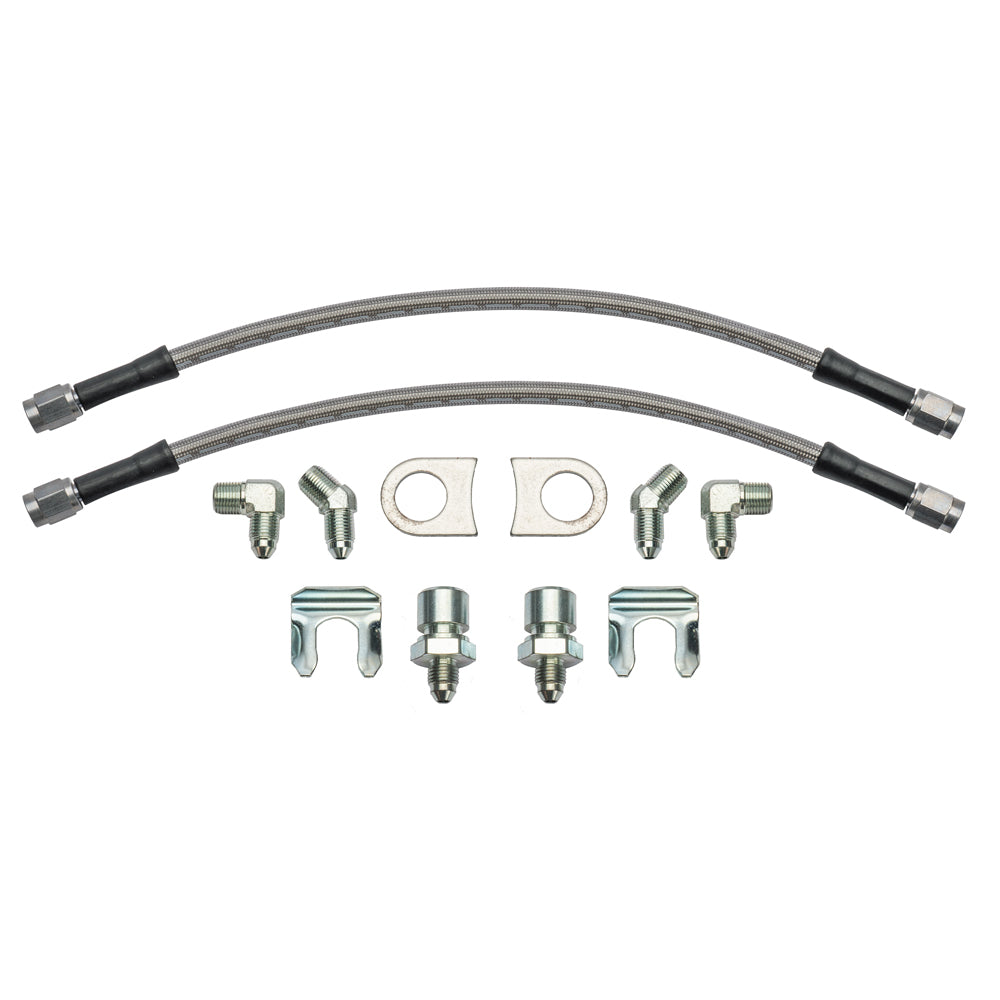

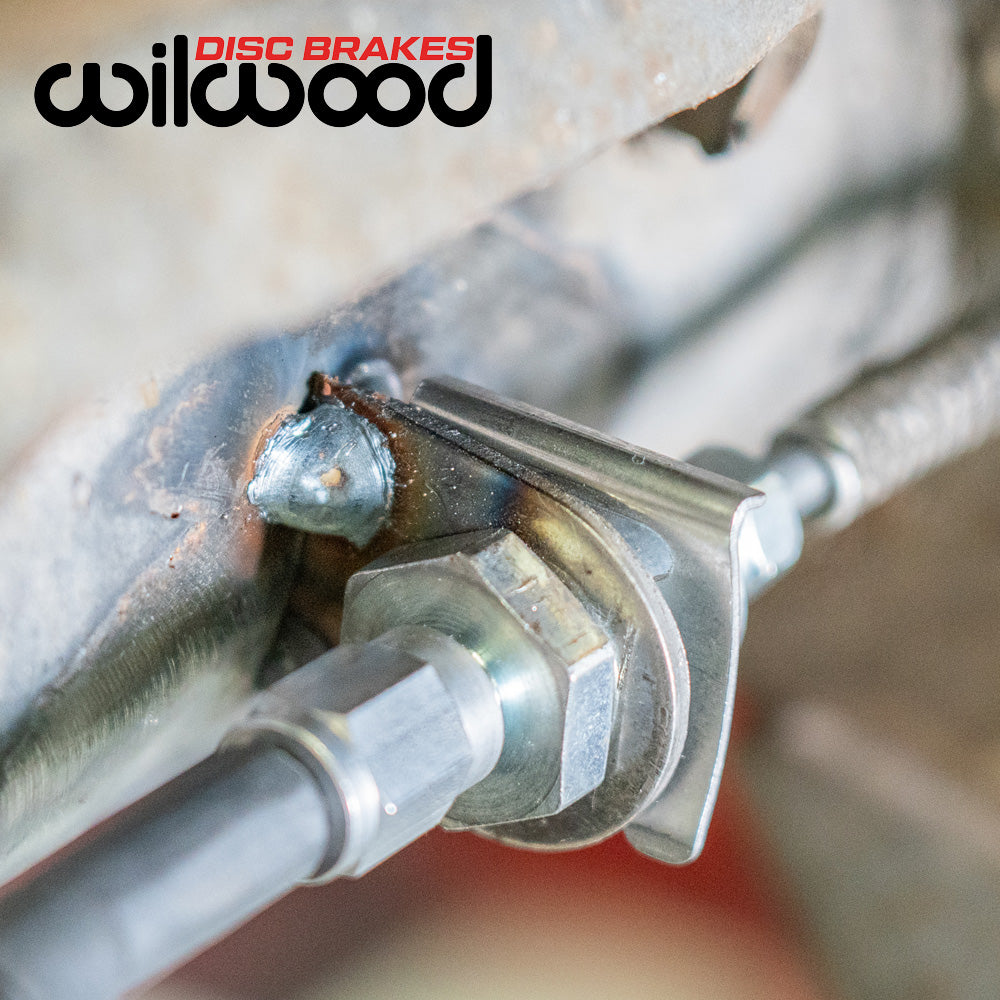

Wilwood combines a pair of 12-inch flexlines with weld-on tabs for securing the hard-line junctions at a rear axle. The tabs provide a fixed support point so movement is taken by the hose rather than the rigid brake tube. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 220-17288
- Component: Axle brake hose kit with weld-on tabs
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-16990
- Hose quantity: 2
- Listed weight: 0.790 lb
Fitment & Compatibility
Choose this welded-tab configuration for a suitable 3.00-inch axle-tube installation. Check tube material, tab placement, 3/8-24 inverted-flare connections and the caliper's 1/8-27 NPT port; welding and hose routing require a qualified installer.
