Product details

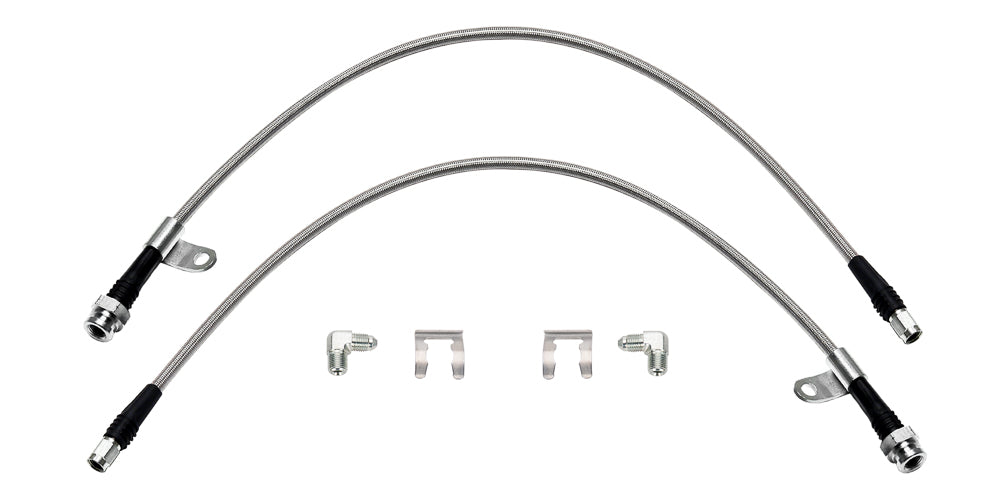

Wilwood lists this two-hose set for either the front or rear C8 conversion installation. The hoses incorporate the metric inverted-flare chassis connection and use separate 90-degree NPT caliper fittings. The manufacturer is Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines whose selection must suit the complete brake system.
Technical Details
- Manufacturer part number: 220-17008
- Component: Brake flexline and fitting kit
- Hose length (inches): 24.00
- Line or fitting size: -3
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.900 lb
Fitment & Compatibility
The application begins with the 2020 Chevrolet Corvette C8 and depends on the exact Wilwood brake package. Two hoses are supplied, not a four-corner vehicle set; verify axle placement and routing for the chosen conversion.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
