Wilwood Front Brake Plumbing for Ford F-150 and Raptor (2021–2025), 30-Inch Conversion Hoses

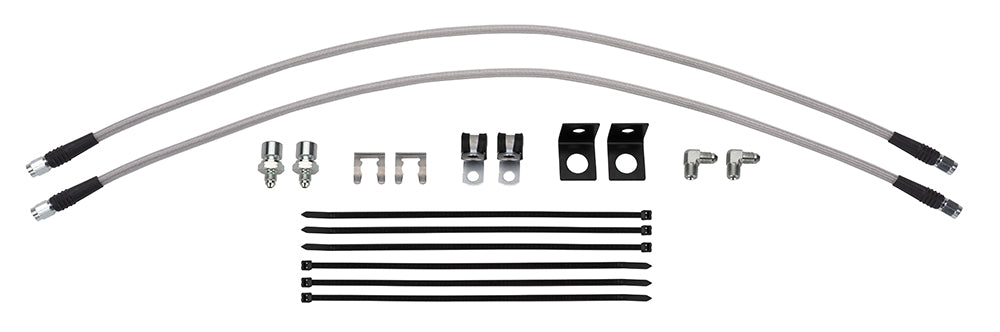

The 30-inch hoses in this Wilwood set are supported by dedicated chassis brackets for the later F-150 and Raptor front installation. Straight hose ends connect the M10 x 1.5 inverted-flare adapters to NPT caliper elbows. A complete brake system depends on compatible component selection. Wilwood Engineering designs and manufactures disc brake systems along with calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use. Bill Wood founded Wilwood in 1977; the company is based in Camarillo, California.

Technical Details

• Manufacturer part number: 220-17001
• Component: Brake flexline and fitting kit
• Hose length (inches): 30.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to M10 x 1.5 inverted flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: 90 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-13125
• Chassis adapter reference: 220-13923
• Chassis retaining clip reference: 300-15780
• Line support reference: 250-12636
• Hose quantity: 2
• Listed weight: 1.080 lb

Fitment & Compatibility

DS-1526 identifies this package with the 2021–2025 Ford F-150 and Raptor Aero6-DM front kit. Follow its bracket and ABS-wire retention instructions, and check the installed brake system before using this hose set with another conversion.
