Product details

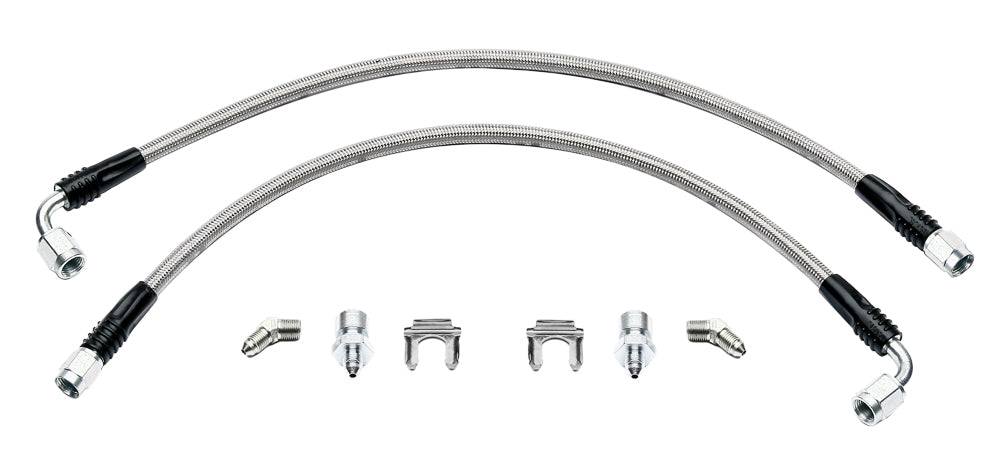

This Ram 1500 front kit includes alternate chassis fittings to accommodate the specified M10 x 1 or M12 x 1 inverted-flare connection. The 16-inch hoses have angled outlets and use 45-degree NPT caliper adapters. Wilwood Engineering, founded in 1977 by Bill Wood, designs and manufactures disc brake systems and components in its role as a Camarillo, California-based brake specialist. Its range serves motorsport, street-performance and specialized applications through calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selection of each part must match the complete brake system's requirements.
Technical Details
- Manufacturer part number: 220-16802
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: M10 x 1 inverted flare or M12 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-15042/220-17469
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
The manufacturer names Ram 1500 applications from 2018 onward with 16-inch front conversion rotors. Select the adapter that matches the truck's actual hard-line thread and seat, and confirm the exact brake kit rather than extending fitment to every later Ram platform.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
