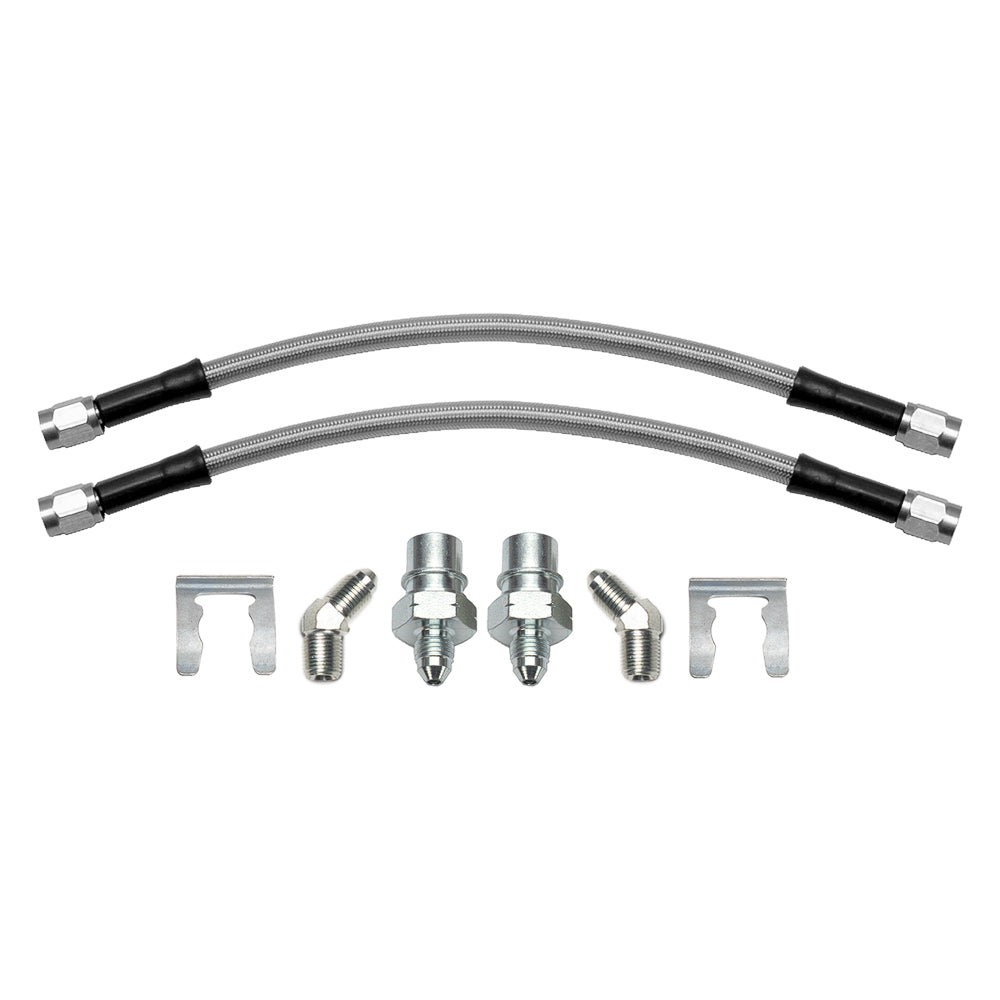

Wilwood Rear Brake Hose Pair for BMW E36 M3 (1995–1999), 10-Inch Bubble-Flare Kit

This compact rear hose kit suits the Wilwood conversion layout specified for the BMW E36 M3. Its 10-inch lines join bubble-flare chassis adapters to 45-degree NPT fittings at the replacement calipers. Bill Wood established Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized use. The individual parts must be selected as compatible elements of the complete brake system.

Technical Details

• Manufacturer part number: 220-16016
• Component: Brake flexline and fitting kit
• Hose length (inches): 10.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to M10 x 1 bubble flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: 45 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-6412
• Chassis adapter reference: 220-6890
• Chassis retaining clip reference: 300-15780
• Hose quantity: 2
• Listed weight: 0.690 lb

Fitment & Compatibility

Wilwood identifies the 1995–1999 E36 M3 rear application. Confirm the conversion caliper and chassis fitting seat; these NPT adapters do not establish direct compatibility with an original BMW caliper.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide

For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
