Product details

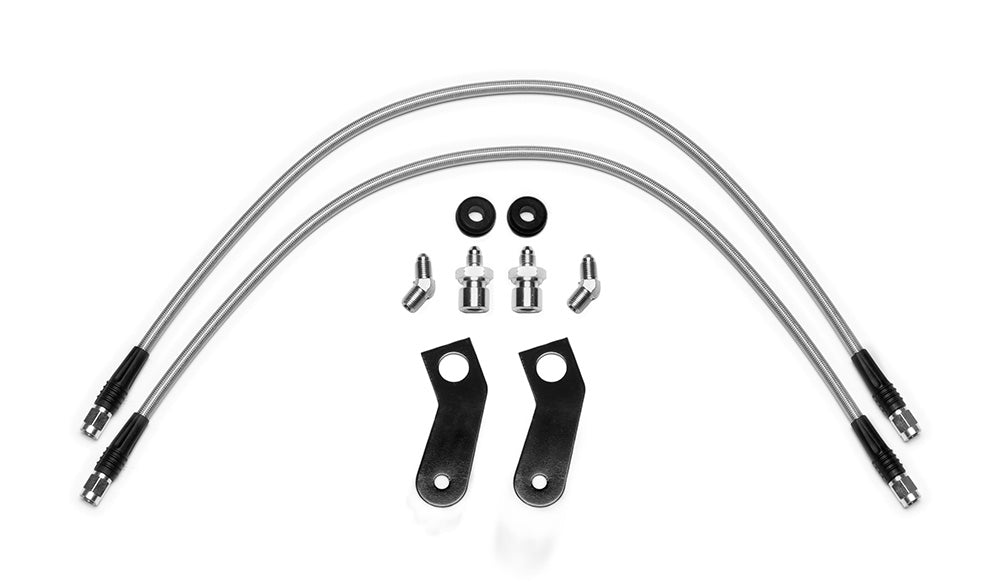

Wilwood's Wrangler JL rear hose kit combines 25-inch straight-ended flexlines with angled caliper adapters. The included brackets locate the hard-line junctions, allowing the flexible section to follow rear suspension movement. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-15929
- Component: Brake flexline and fitting kit
- Hose length (inches): 25.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6413
- Line support reference: 250-9348
- Hose quantity: 2
Fitment & Compatibility
The manufacturer lists Wrangler JL rear applications from 2018 onward. Match the specific Wilwood conversion, M10 x 1 inverted-flare hard lines and bracket locations; the Gladiator JT rear uses a separately specified hose set.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
