Product details

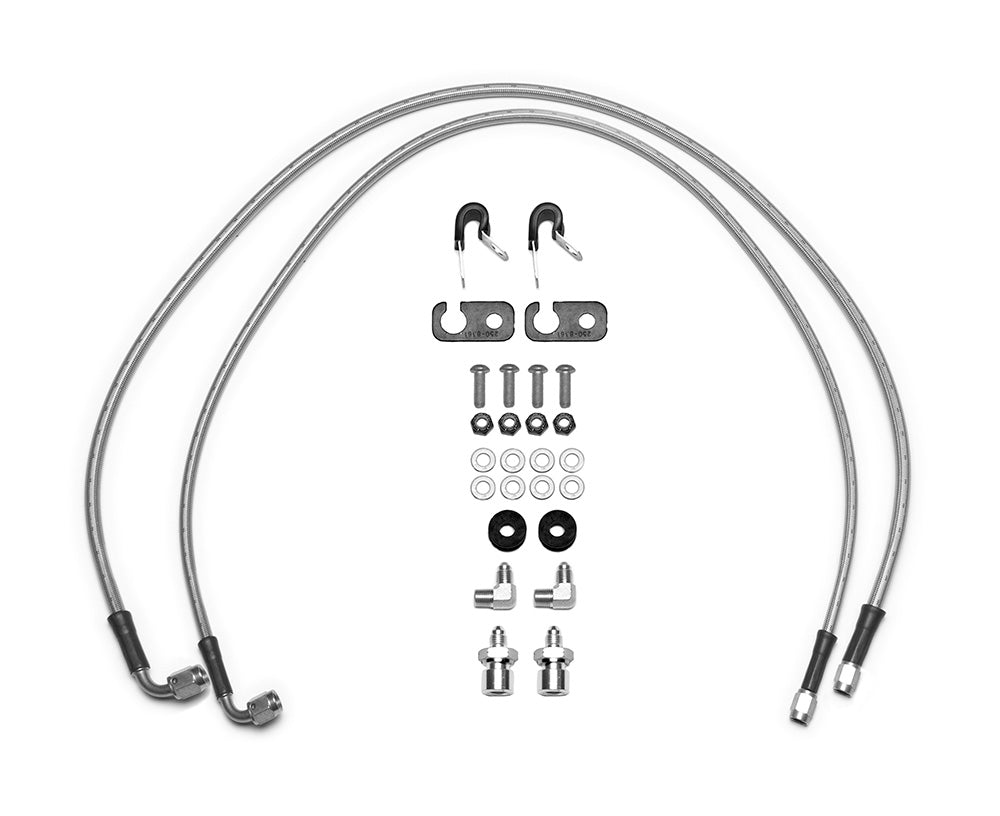

These long Wilwood front hoses provide the routing length specified for the Jeep JL/JT conversion installation. The 33-inch lines use an angled hose outlet, separate 90-degree NPT caliper adapters and mounting brackets. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 220-15927
- Component: Brake flexline and fitting kit
- Hose length (inches): 33.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Line support reference: 250-8361
- Hose quantity: 2
Fitment & Compatibility
Confirmed for matched AERO6-DM front conversions 140-17275 with 13.38-inch rotors and 140-15892 with 14-inch rotors. Current kit applications cover selected Jeep Wrangler JL models from 2018–2025 and Gladiator JT models from 2020–2025; the 2018 Wrangler rows specify Rubicon and Sport. Later Rubicon, Sport, Sahara, Willys, Mojave and special-edition coverage varies by model, year and trim, as detailed in the linked manufacturer application pages. Factory spindles and the specified Wilwood conversion are required. Lift height alone does not establish correct hose routing.
Manufacturer Documents
- Wilwood product specifications
- Wilwood flexline fitting guide
- Wilwood application and installation reference
- Wilwood application and installation reference
- Wilwood application and installation reference
- Wilwood application and installation reference
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
