Product details

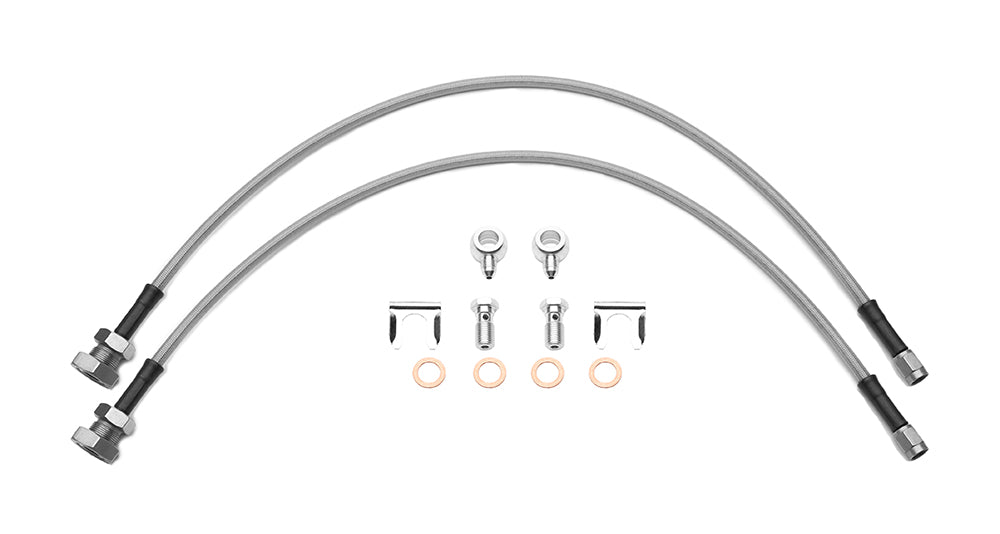

This Wilwood D52 hose package uses bulkhead-style chassis ends for a panel-supported connection. The 24-inch hoses terminate at separate imperial banjo adapters for the specified D52 caliper inlet. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.
Technical Details
- Manufacturer part number: 220-15868
- Component: Brake flexline and fitting kit
- Hose length (inches): 24.00
- Line or fitting size: -3
- Hose inlet connection: 3/8-24 Male Bulkhead
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 7/16" Banjo
- Caliper adapter reference: 220-11325
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.200 lb
Fitment & Compatibility
The kit notes identify 5/8-26 external bulkhead mounting threads, while the hose connection field lists 3/8-24 at the hydraulic end; these describe different interfaces. Confirm the chassis line seat, mounting hole and 7/16-20 banjo bolt requirements rather than substituting metric D154 hardware.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
