Wilwood Front Straight-End Brake Hose Kit for Ford F-150 Raptor (2017–2020), 20-Inch

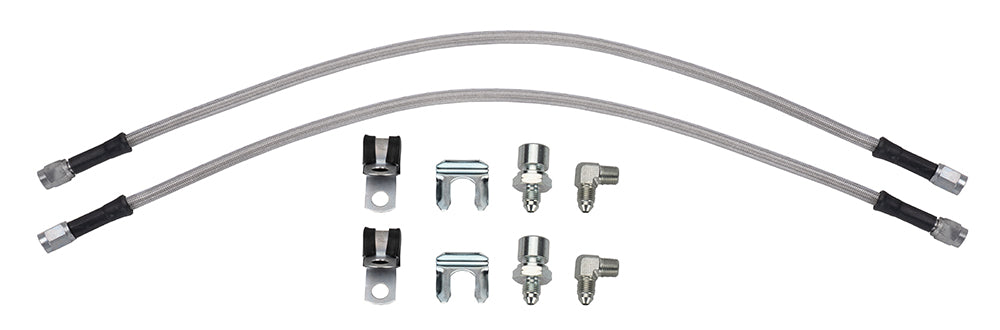

The later Raptor front installation uses M10 x 1.5 chassis threads rather than the earlier fine-thread connection. This Wilwood kit combines those adapters with straight-ended 20-inch hoses and right-angle NPT caliper fittings. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer part number: 220-15838
• Component: Brake flexline and fitting kit
• Hose length (inches): 20.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to M10 x 1.5 inverted flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: 90 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-13125
• Chassis adapter reference: 220-13923
• Chassis retaining clip reference: 300-15780
• Hose quantity: 2
• Listed weight: 0.850 lb

Fitment & Compatibility

The hose page names 2017–2019 Raptor applications; current DS-1526 explicitly covers the corresponding front kit through 2020. Use the documented Ford F-150 Raptor Aero6-DM configuration and verify the actual chassis connection before installation.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide
• Wilwood application and installation reference

PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
