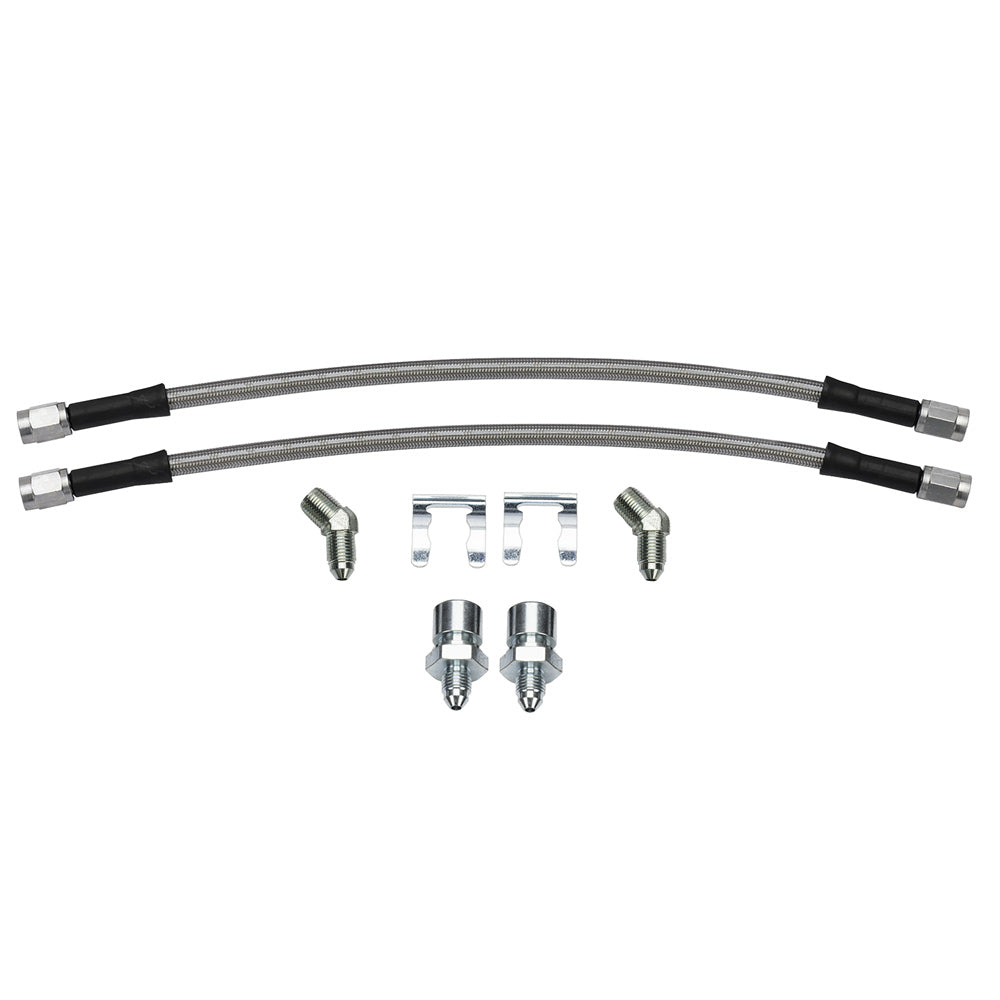

Wilwood Front 10-Inch Brake Hose Kit for Ram 1500 2WD (2013–2018) Conversions

This 10-inch Wilwood hose pair is documented for the front brakes on 2013–2018 Ram 1500 two-wheel-drive conversions. The straight hose ends work with metric inverted-flare chassis fittings and 45-degree adapters at the calipers. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.

Technical Details

• Manufacturer part number: 220-15806
• Component: Brake flexline and fitting kit
• Hose length (inches): 10.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to M10 x 1 inverted flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: 45 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-6412
• Chassis adapter reference: 220-6413
• Chassis retaining clip reference: 300-15780
• Hose quantity: 2
• Listed weight: 0.720 lb

Fitment & Compatibility

Wilwood DS-1343 specifies this kit for the Ram 1500 2WD front TX6R system, and DS-1593 lists it with the corresponding Aero6-DM package. Those instructions establish the application despite a conflicting 2500/3500 rear heading on the hose page. Match the precise conversion kit; the 4WD installation uses a different hose package.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide
• Wilwood application and installation reference
• Wilwood application and installation reference

For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
