Product details

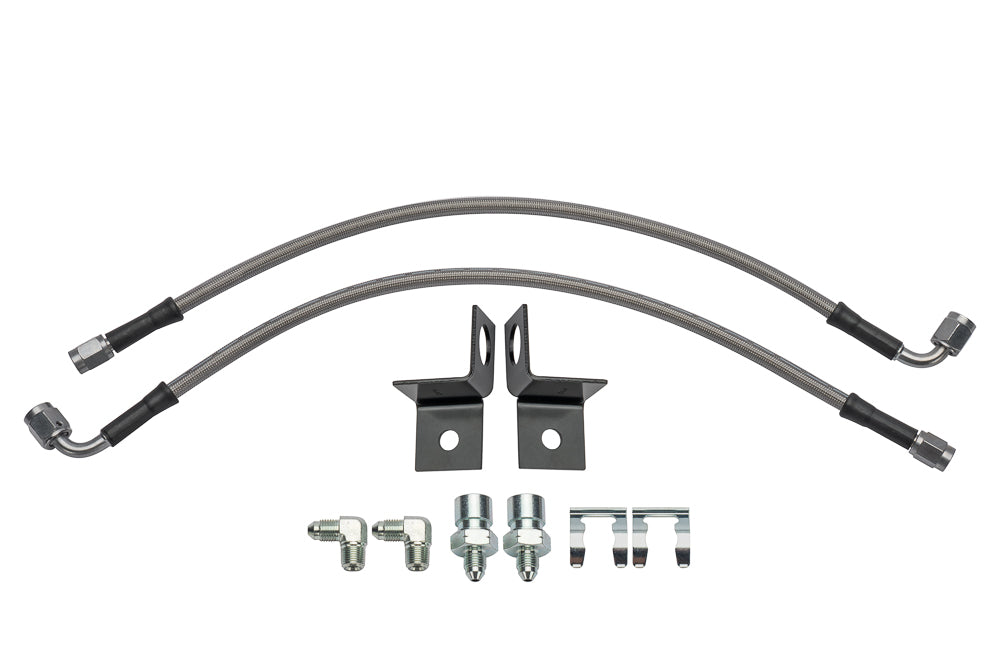

Wilwood's LC70 rear flexline set uses a 90-degree hose outlet to turn the line toward the caliper connection. Its 12-inch braided hoses are paired with M10 x 1 inverted-flare chassis adapters and separate NPT elbows. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.
Technical Details
- Manufacturer part number: 220-15699
- Component: Brake flexline and fitting kit
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.960 lb
Fitment & Compatibility
The application is a Toyota Land Cruiser LC70 rear brake conversion, without a complete model-year range on the product page. Verify the exact conversion kit and bracket positions, then allow adequate movement without pulling the hoses tight.
