Wilwood Right Combination Valve Bracket and Lines for Compact Tandem Master Cylinders

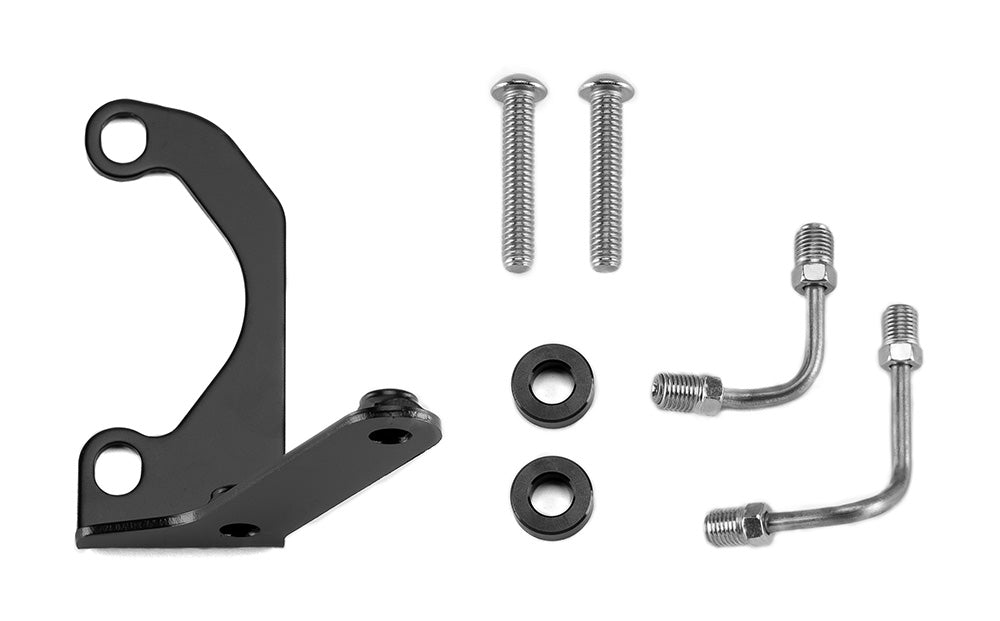

This right-hand bracket places a Wilwood combination proportioning valve beside a compact tandem master cylinder. The formed 3/16-inch tubes join the hydraulic ports while the bracket supports the valve independently of those tubes. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

• Manufacturer part number: 220-15679
• Component: Combination proportioning valve mounting bracket and formed line kit
• Line or fitting size: 3/16"
• First connection: 3/8-24 inverted flare Male
• Second connection: 3/8-24 inverted flare Male
• Package quantity: 1

Fitment & Compatibility

Select this arrangement for the specified short compact tandem cylinder and matching combination valve. Verify right-side port access, bracket attachment and 3/8-24 inverted-flare connections; neither the master cylinder nor the valve is included.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide

With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
