Product details

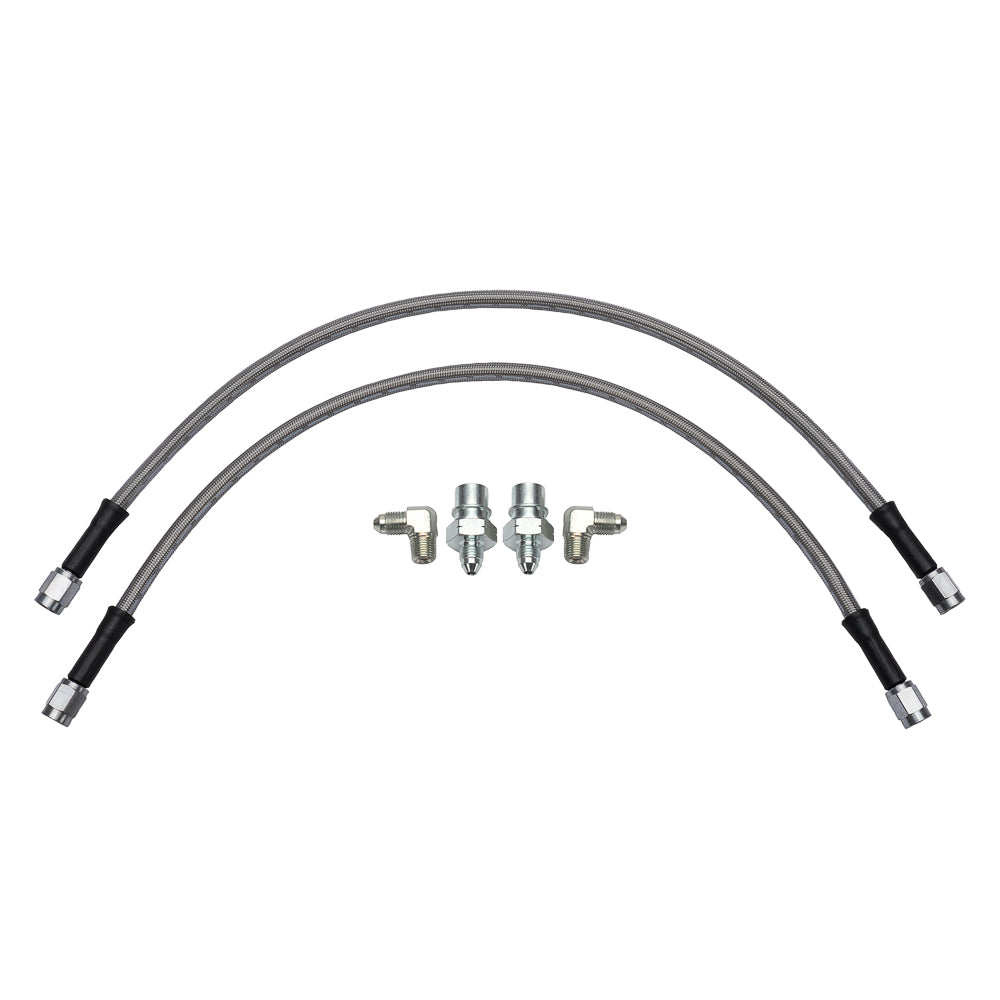

The short 14-inch lines in this Wilwood front kit connect specified Ram heavy-duty brake conversions to the chassis plumbing. Straight -3 hose ends use separate metric inverted-flare chassis fittings and right-angle caliper adapters. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 220-15672
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Hose quantity: 2
Fitment & Compatibility
The manufacturer identifies Ram 2500 and 3500 front applications from 2014 onward. That open-ended listing does not establish compatibility with every later truck; compare the installed Wilwood brake kit, M10 x 1 chassis seats and suspension travel before selecting these hoses.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
