Product details

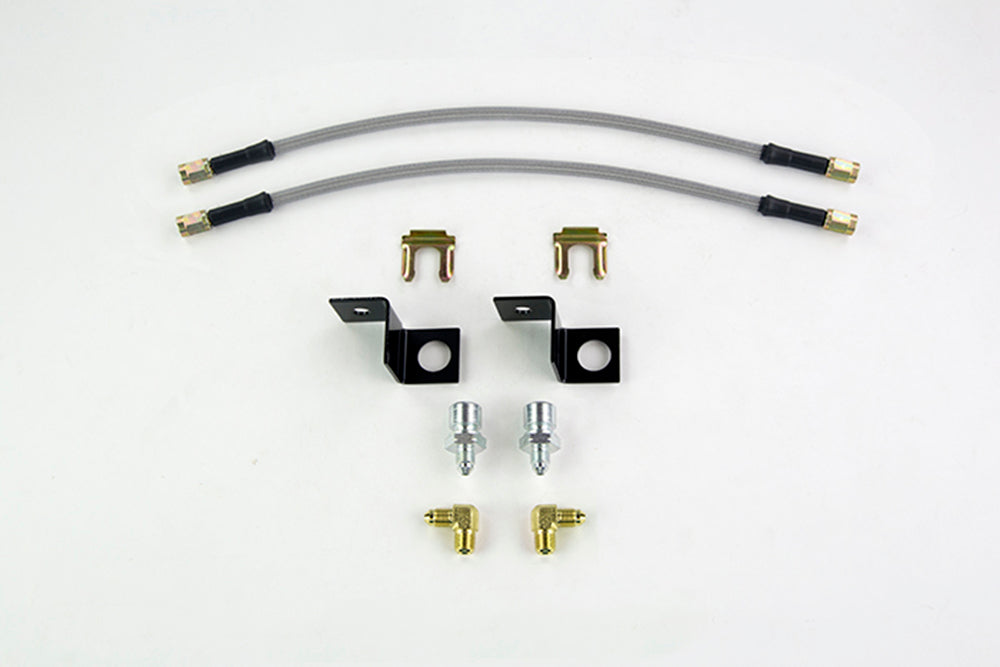

This short rear F-150 line arrangement uses the M10 x 1.5 inverted-flare chassis interface. The two 14-inch hoses connect to right-angle NPT caliper fittings, with brackets and retaining clips for the specified conversion. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.
Technical Details
- Manufacturer part number: 220-15276
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1.5 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13923
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-9140 / 250-9141
- Hose quantity: 2
- Listed weight: 0.950 lb
Fitment & Compatibility
Wilwood identifies the 2015-onward F-150 rear application. Confirm the exact model generation and brake kit, and use the specified 1.5 mm thread pitch at the chassis connection.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
