Wilwood Front Brake Hose Pair for Chevrolet Corvette C6 Base (2005–2013), 18.5-Inch Banjo Lines

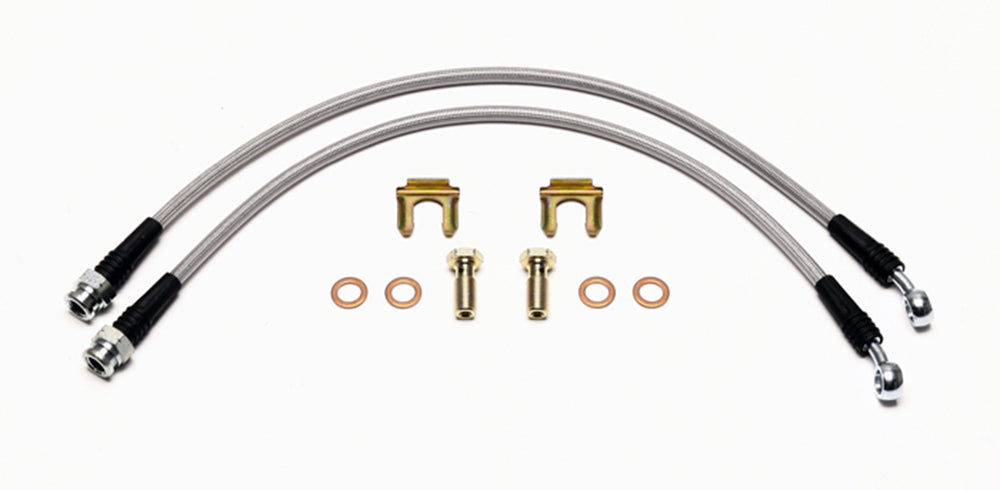

Integrated 30-degree banjo ends identify this 18.5-inch Wilwood hose pair for the documented Chevrolet Corvette C6 Base front application. The two assemblies connect the specified chassis fittings and caliper package. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer part number: 220-15194
• Component: Brake flexline and fitting kit
• Hose length (inches): 18.50
• Line or fitting size: -3
• Hose inlet connection: M10 inverted flare Female
• Hose inlet angle: Straight
• Hose outlet connection: M10 Banjo
• Hose outlet angle: 30 Degree
• Chassis retaining clip reference: 300-15780
• Hose quantity: 2
• Listed weight: 0.750 lb

Fitment & Compatibility

Wilwood flyer FL392 identifies these hoses for the front of 2005–2013 C6 Corvette Base models with its SLC56 replacement-caliper package. The exact hose page also labels front and rear use without defining that rear application, while FL392 lists a separate shorter rear hose kit. Rear compatibility therefore needs manufacturer confirmation. This listing contains two hoses, not a complete four-corner set.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide
• Wilwood application and installation reference

With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
