Product details

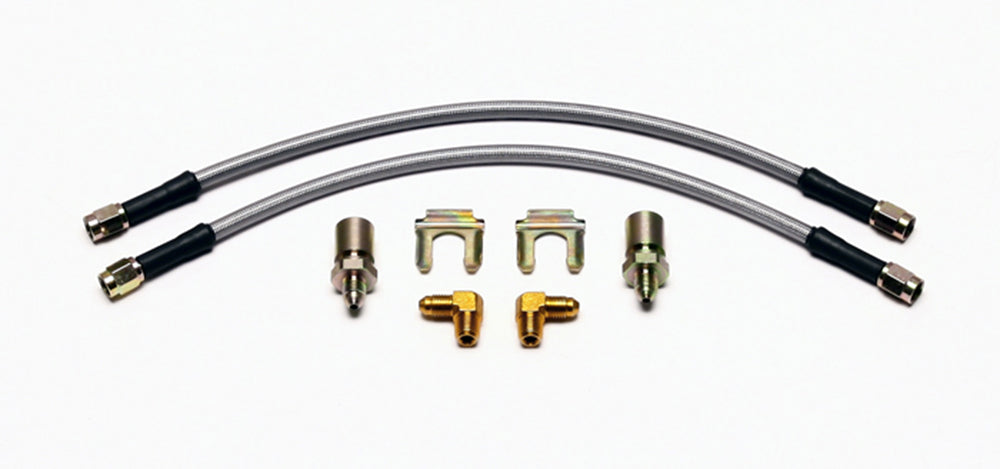

The MG TD front conversion uses a less common 3/8-20 chassis thread rather than the 3/8-24 connection found on many other kits. Two 14-inch hoses join the specified inverted-flare adapters to right-angle NPT caliper fittings. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 220-15157
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-20 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-15158
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Confirm the 1950–1953 MG TD conversion, including the actual hard-line thread and seat. A similar-looking 3/8-inch adapter with a different pitch must not be substituted.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
