Product details

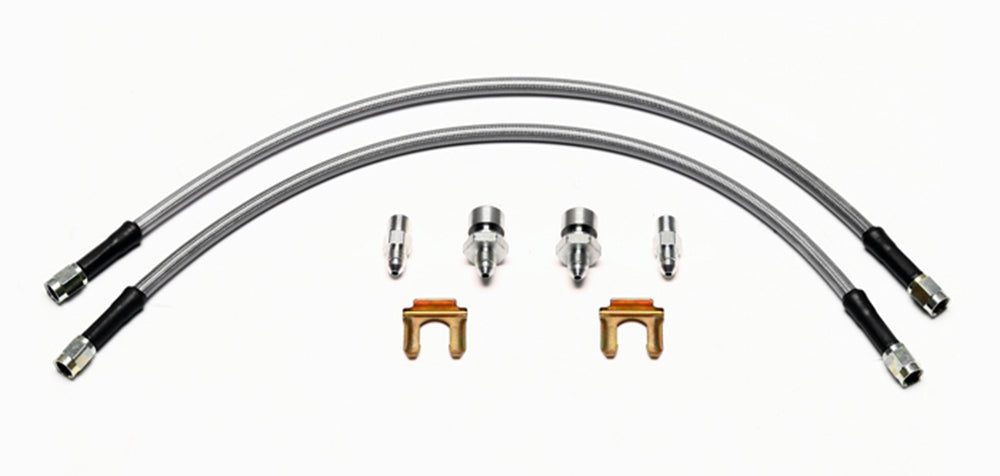

This connection-based kit keeps the caliper approach straight through a separate NPT adapter. Two 18-inch braided hoses mate with 3/8-24 inverted-flare chassis fittings and the straight caliper-side connectors. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.
Technical Details
- Manufacturer part number: 220-15021
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6956
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Choose where both port placement and available space support straight fittings. Verify the chassis flare seat and the required hose travel before applying the kit to a particular axle or vehicle.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
