Product details

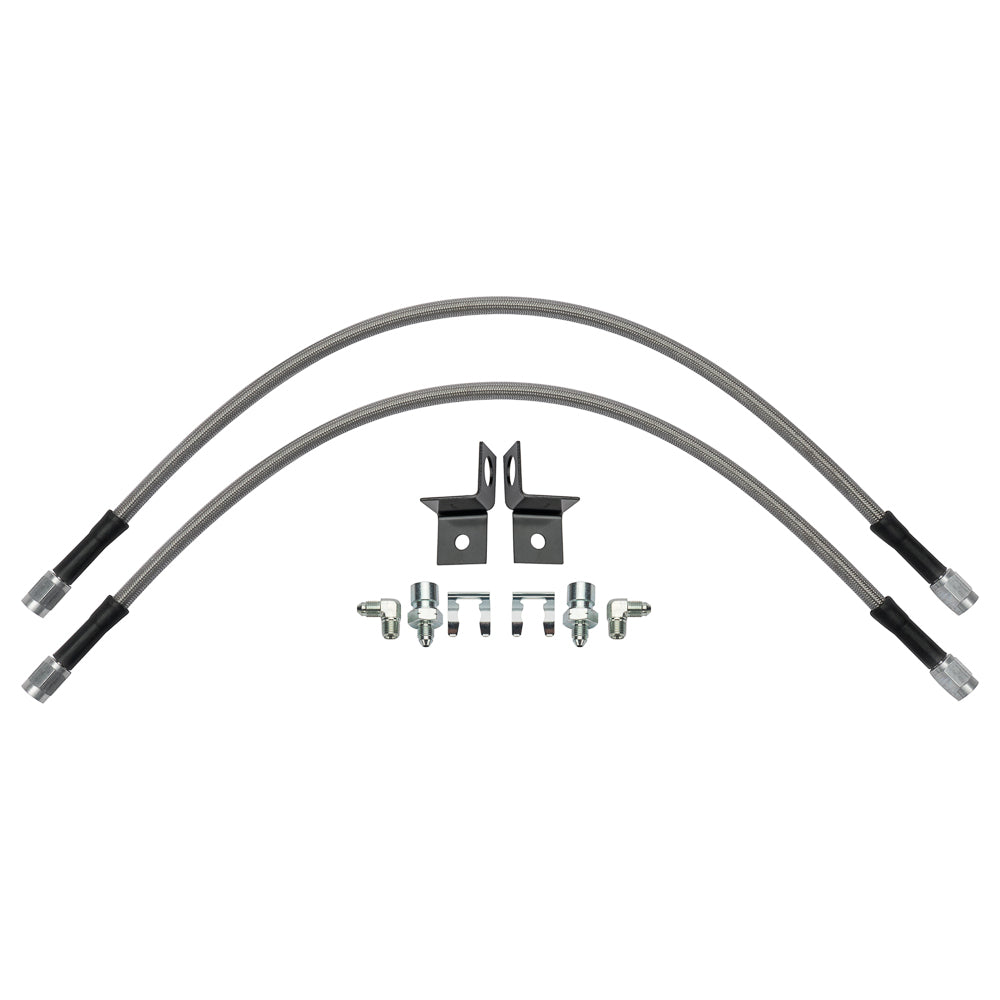

Wilwood lists this line kit with its Crown Victoria front brake conversion. The 18-inch hose pair connects through metric bubble-flare chassis adapters to separate NPT elbows, with mounting hardware positioned according to the front installation. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 220-14690
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.950 lb
Fitment & Compatibility
Match the 2003–2011 Crown Victoria conversion and its instructions. A shared vehicle platform does not by itself verify another model's hose application; check the actual brake kit and chassis connection.
