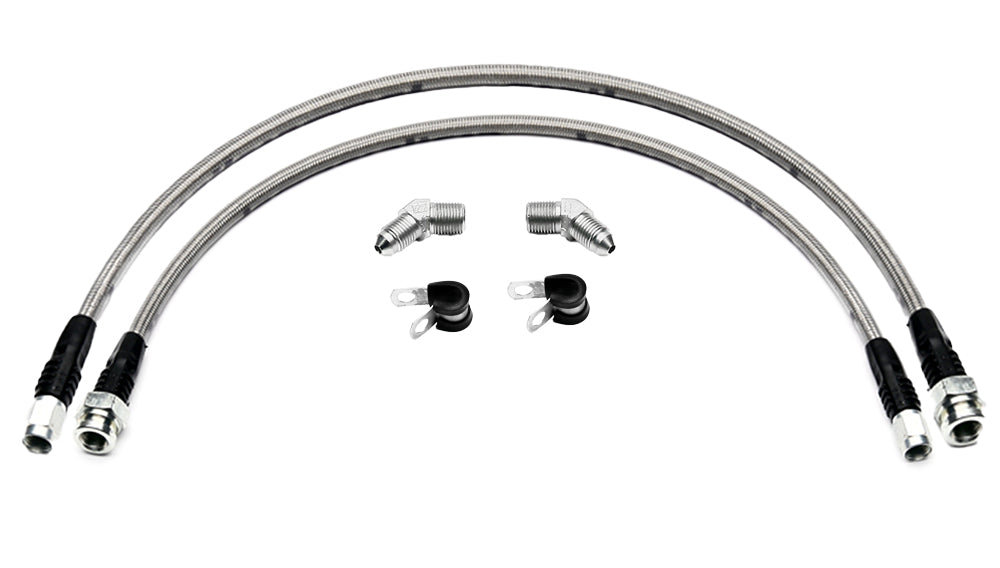

Wilwood Front Tacoma Aerolite Brake Conversion Lines, 20-Inch Metric-Inlet Hose Set

The Tacoma front arrangement uses integrated metric inverted-flare chassis ends and 45-degree NPT caliper fittings. Wilwood's Aerolite 6 direct-mount instructions identify this hose kit for the specified 2005–2023 Tacoma conversion. Since its founding by Bill Wood in 1977, Wilwood Engineering has developed a range serving motorsport, street-performance and specialized brake applications. Based in Camarillo, California, it designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component should be selected for compatibility with the complete braking system.

Technical Details

• Manufacturer part number: 220-14618
• Component: Brake flexline and fitting kit
• Hose length (inches): 20.00
• Line or fitting size: -3
• Hose inlet connection: M10 inverted flare Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: 45 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-6412
• Hose quantity: 2

Fitment & Compatibility

Follow the exact brake-kit instructions rather than assuming the hose fits every Tacoma caliper. The current hose-page year summaries are shorter than the 2005–2023 range documented in DS-1569, so match the kit reference, chassis connection and mounting clamp.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide
• Wilwood application and installation reference

If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
