Product details

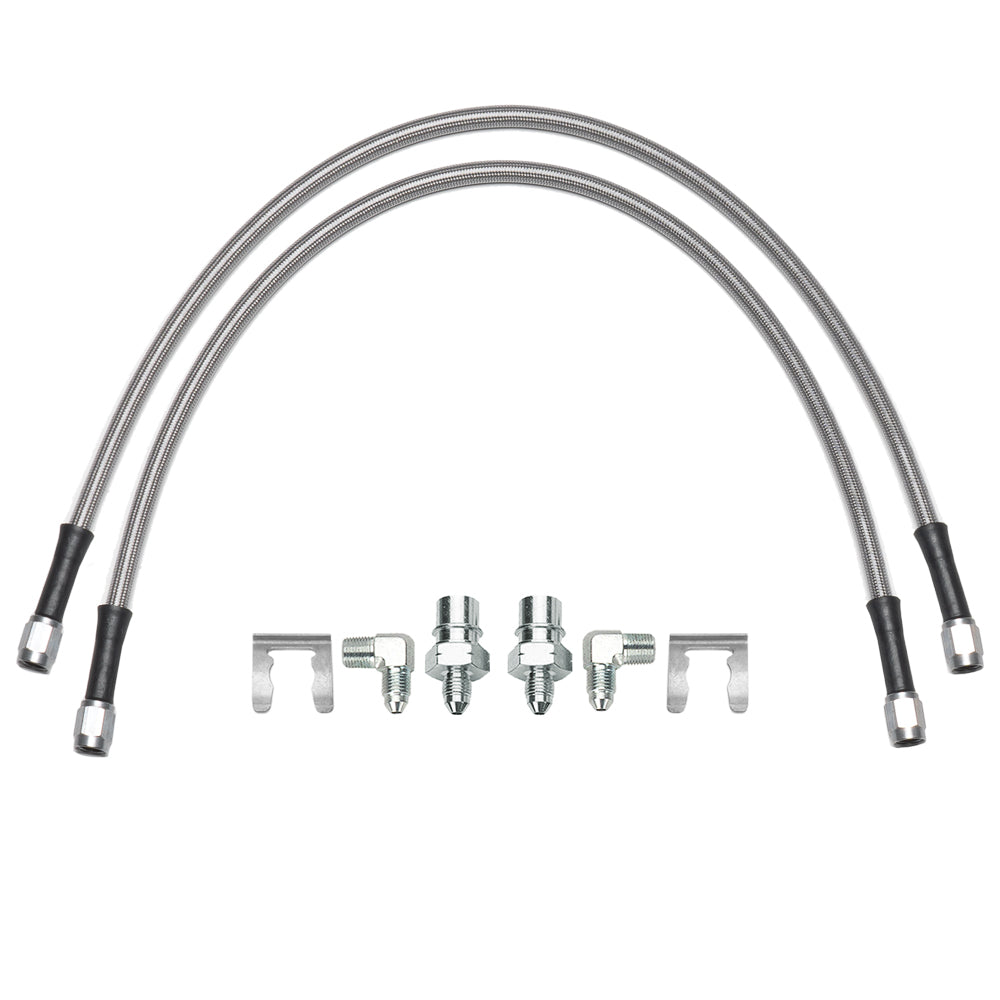

The A4 front line arrangement combines 20-inch hoses with metric bubble-flare chassis adapters. Separate 90-degree NPT caliper fittings establish the connection to the specified Wilwood conversion, with clips retaining the chassis junctions. The manufacturer is Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines whose selection must suit the complete brake system.
Technical Details
- Manufacturer part number: 220-14598
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
Fitment & Compatibility
Confirm the actual Audi A4 generation and front brake kit because the hose application does not give a complete year range. Do not substitute these conversion hoses for an unspecified factory caliper connection.
Manufacturer Documents
PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
