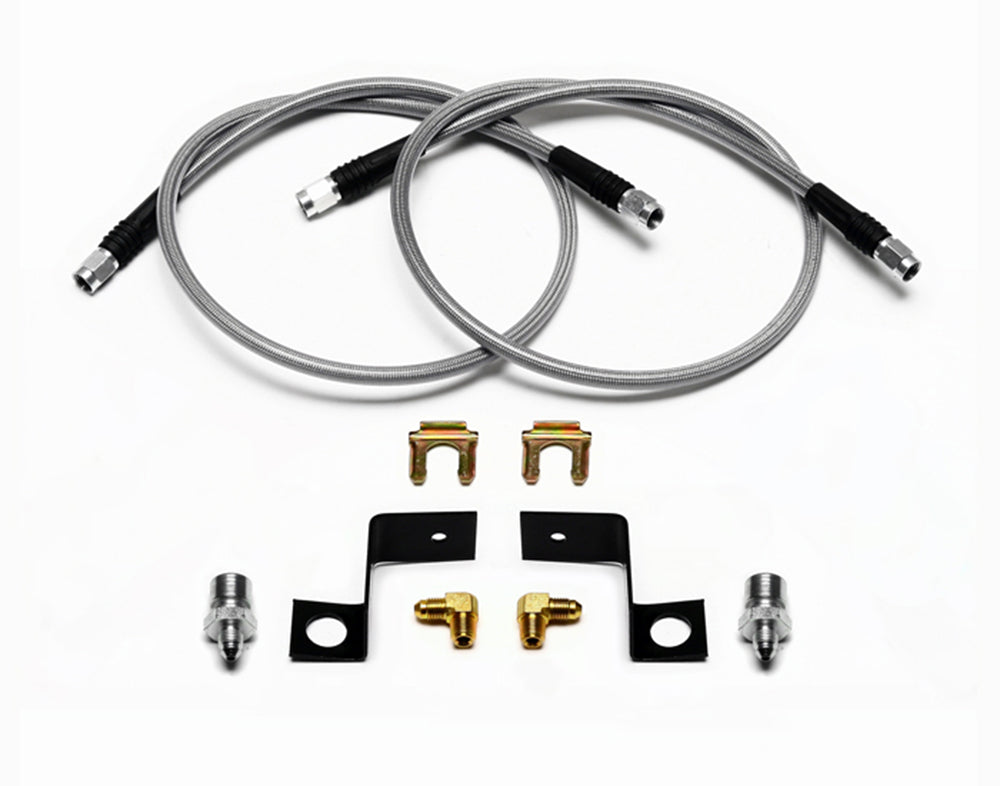

Two metric chassis-adapter options distinguish this 30-inch bracketed hose package. Wilwood lists M10 x 1 and M10 x 1.5 inverted-flare interfaces, with straight -3 female hose ends and separate 90-degree NPT caliper fittings. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-14112
- Component: Brake flexline and fitting kit
- Hose length (inches): 30.00
- Line or fitting size: -3
- Chassis adapter connection: M10 x 1 inverted flare or M10 x 1.5 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413 / 220-13923
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-12864 / 250-12865
- Hose quantity: 2
- Listed weight: 1.150 lb
Fitment & Compatibility
Identify the hard-line thread pitch before selecting the adapter, and verify that its flare seat matches the tube. The long route and mounting brackets must suit the vehicle's actual moving and stationary attachment points.
