Product details

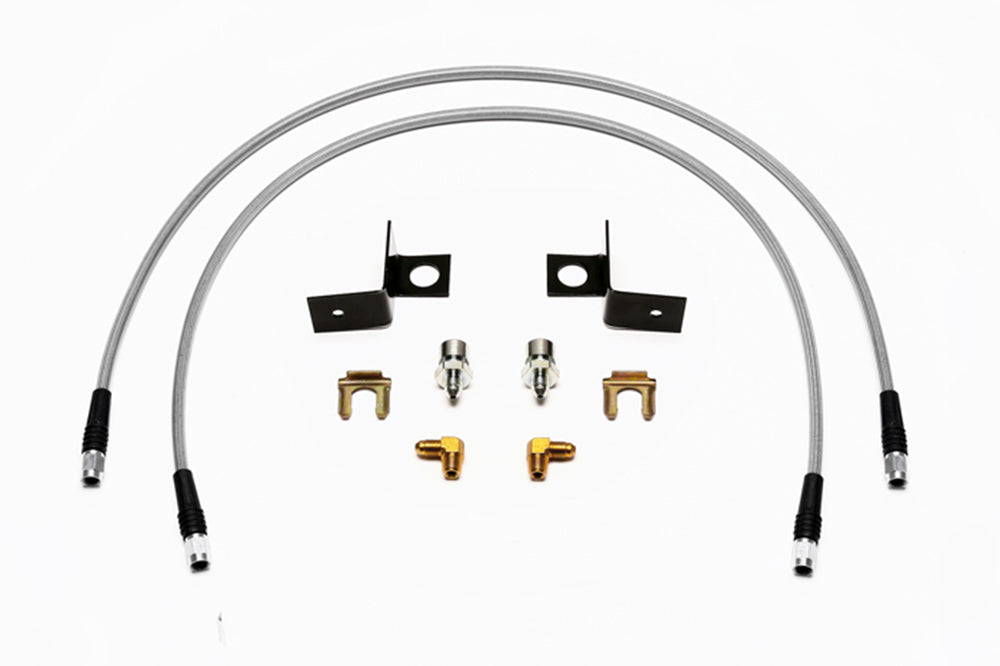

This long-line package combines two 30-inch braided hoses with mounting brackets and 3/8-24 inverted-flare chassis adapters. Separate 90-degree NPT fittings turn the connection at the calipers while the hose terminals remain straight. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 220-14111
- Component: Brake flexline and fitting kit
- Hose length (inches): 30.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-12864 / 250-12865
- Hose quantity: 2
- Listed weight: 1.150 lb
Fitment & Compatibility
Verify the 30-inch route and bracket spacing on the actual installation. The manufacturer does not identify a specific vehicle on this hose page, so thread, flare seat and movement clearance determine suitability.
