Product details
The bracketed 14-inch kit provides a short hydraulic route between M10 x 1 bubble-flare chassis plumbing and NPT caliper elbows. The line and bracket package should be selected together because the bracket geometry determines where the hose is retained. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-14073
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose outlet connection: -3 Female
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-11776 / 250-11777
- Hose quantity: 2
- Listed weight: 0.950 lb
Fitment & Compatibility

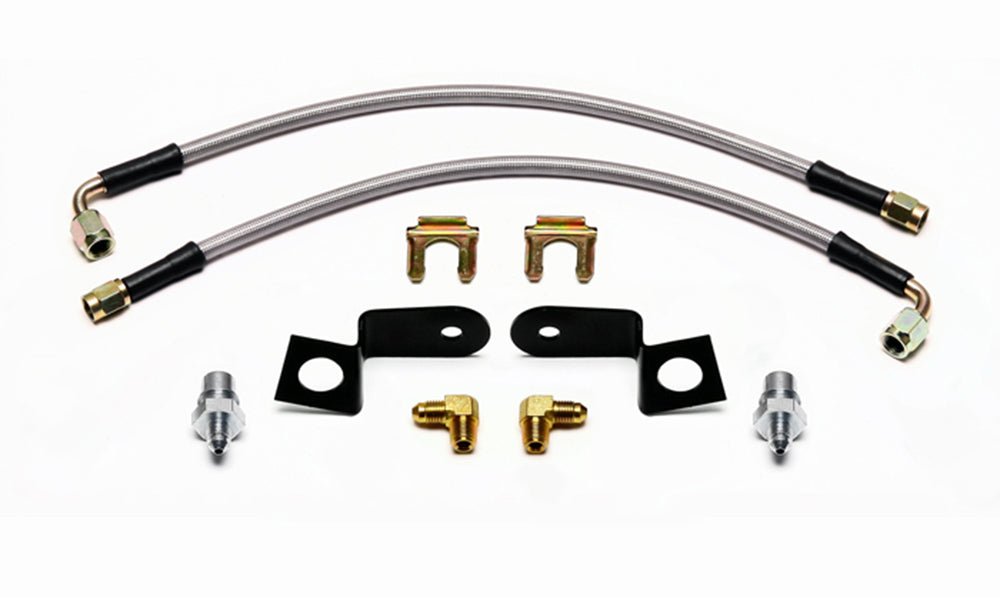

Confirm the physical mounting points and both hydraulic interfaces. The photograph includes an angled hose end, although the current fitting fields describe straight ends; verify the actual assembly before relying on that routing detail.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
