Product details

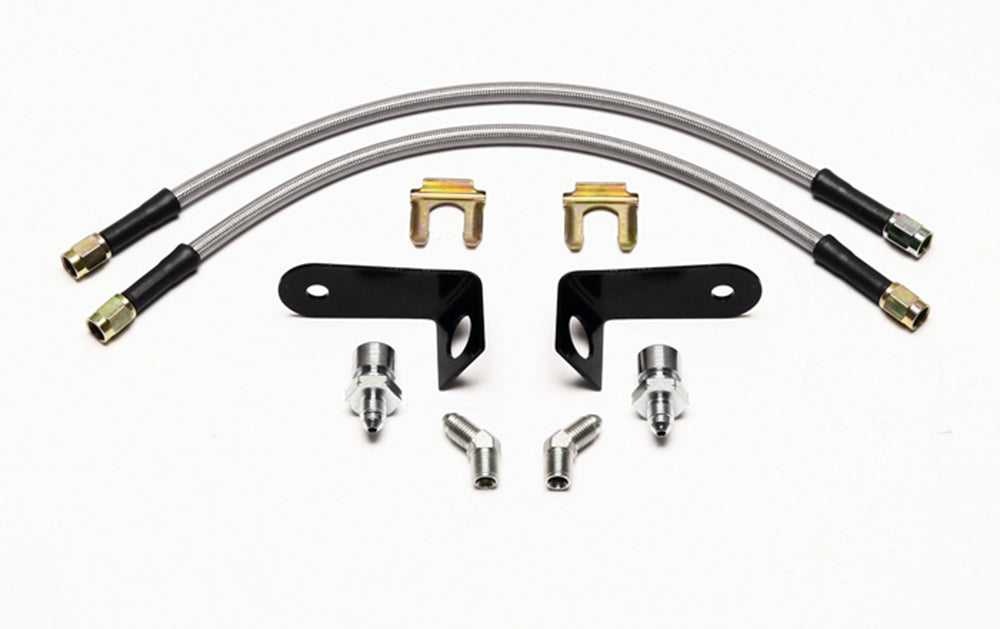

The later Mustang front package uses a 14-inch hose length and the M10 x 1.5 inverted-flare chassis thread. Separate 45-degree caliper fittings and the listed mounting brackets complete the connection arrangement. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 220-13912
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1.5 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-13923
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-9349 / 250-9350
- Hose quantity: 2
- Listed weight: 0.900 lb
Fitment & Compatibility
Wilwood identifies the application as 2015-onward Mustang. Check the conversion's exact supported generation and brackets; retain the specified 1.5 mm chassis thread pitch rather than substituting the common M10 x 1 adapter.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
