Product details

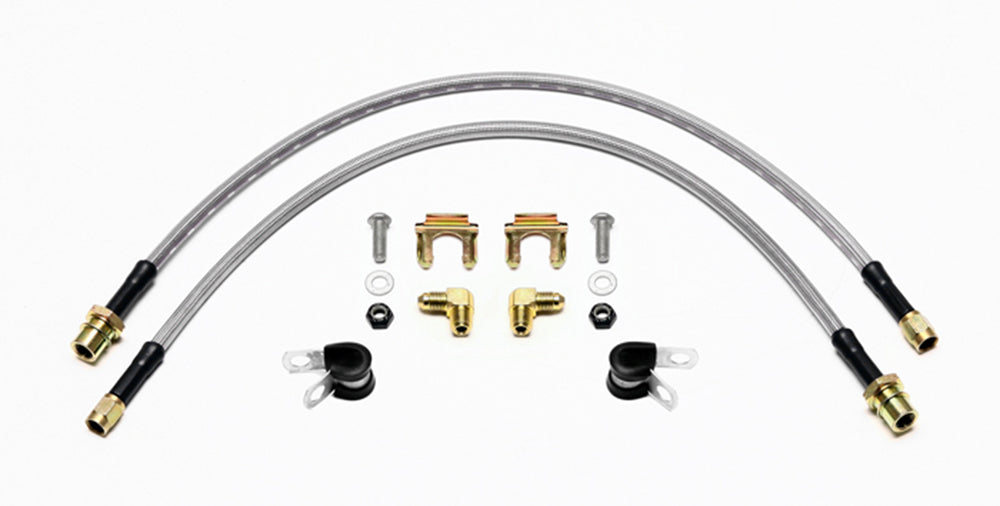

The Mazda3 front line set uses integrated metric bubble-flare chassis connections and separate 90-degree caliper adapters. Its two 20-inch hoses form the listed front axle package for a compatible Wilwood conversion. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.
Technical Details
- Manufacturer part number: 220-13667
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.890 lb
Fitment & Compatibility
Check the actual Mazda3 brake kit and generation against the installation instructions. The model name and earlier open-ended application wording do not establish fitment on every Mazda3 platform.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
