Product details

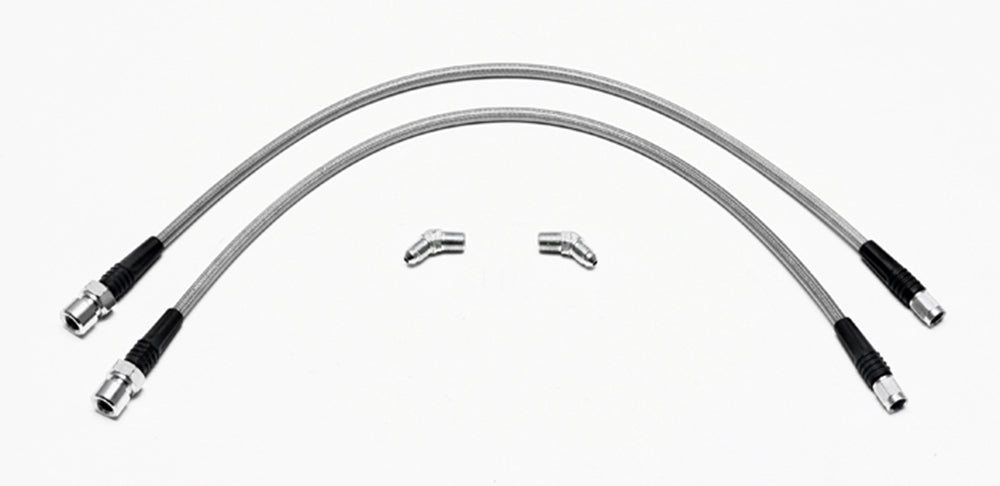

The E90 front hoses integrate the metric bubble-flare chassis inlet into the line assembly. A 22-inch hose length and separate 45-degree caliper adapters are specified for the listed BMW 3 Series conversion. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer part number: 220-13646
- Component: Brake flexline and fitting kit
- Hose length (inches): 22.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Confirm the 2007–2011 E90 3 Series brake kit and its chassis attachment requirements. Do not apply the hose pair to another 3 Series generation or original caliper arrangement based on the series name alone.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
