Product details

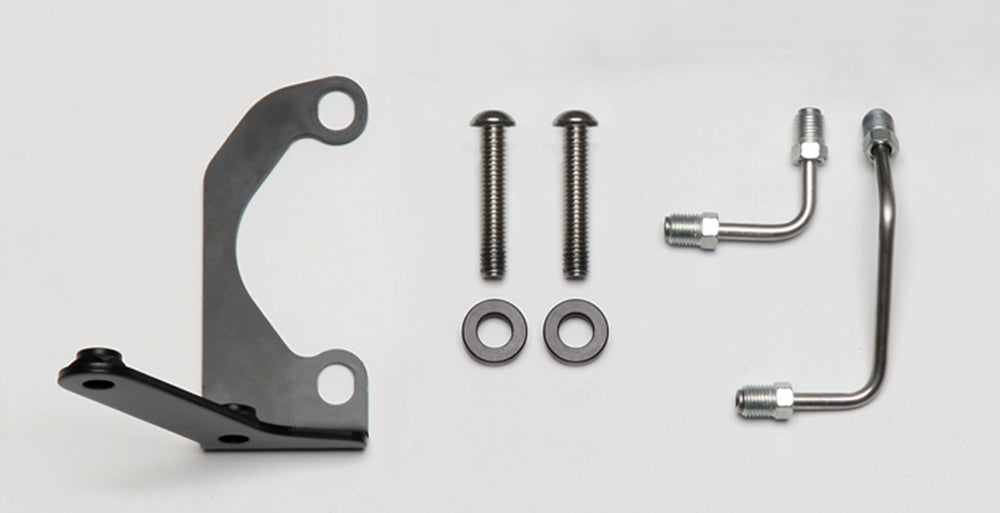

The left-side bracket locates a compatible Wilwood combination proportioning valve beside an aluminum tandem master cylinder. Preformed stainless fluid tubes with installed tube nuts connect the two components, making this a mounting and plumbing kit rather than a master cylinder or valve. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 220-13189
- Component: Combination proportioning valve mounting bracket and formed line kit
- Line or fitting size: 3/16"
- First connection: 3/8-24 inverted flare Male
- Second connection: 3/8-24 inverted flare Male
- Package quantity: 1
Fitment & Compatibility
Match Wilwood's aluminum tandem master-cylinder and combination-valve pairing, with the bracket's left-hand orientation checked in the actual installation. The product description permits manual or boosted systems when the specified components and clearance are suitable.
Manufacturer Documents
PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
