Product details

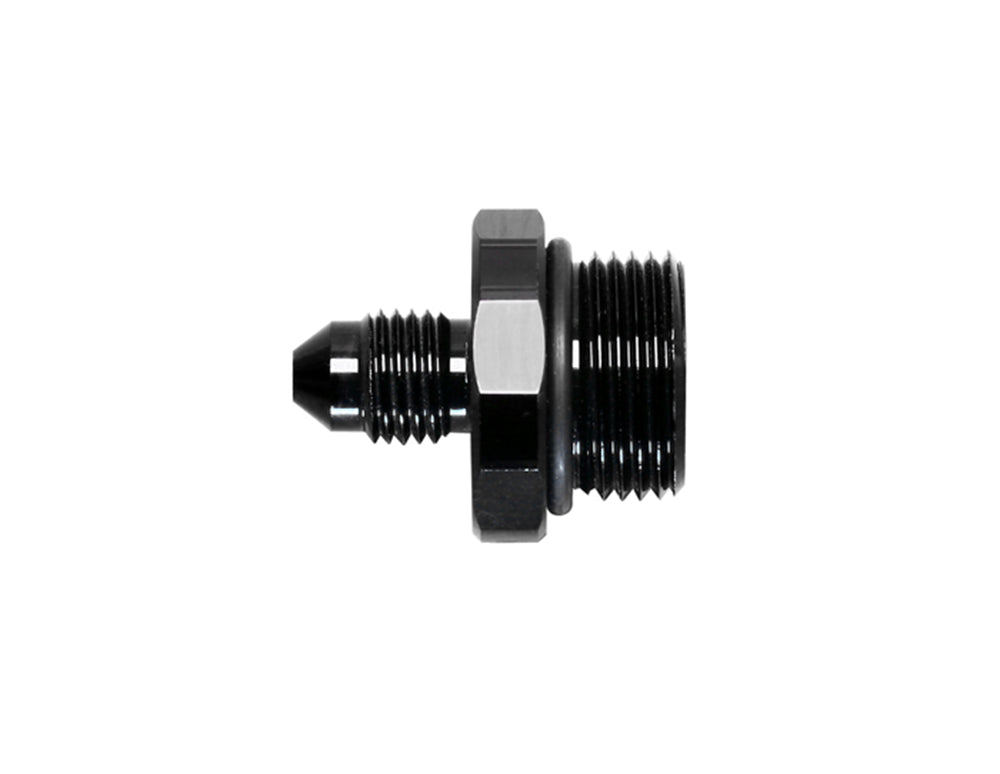

The compact remote master-cylinder inlet fitting changes an 11/16-20 connection to a male -3 interface for the reservoir feed line. Its included O-ring provides the specified inlet seal, and the central hex allows the adapter to be installed independently of the hose. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.
Technical Details
- Manufacturer part number: 220-13130
- Component: Master cylinder or reservoir fitting
- Connection specification: 11/16-20 to -3
- Package quantity: 1
Fitment & Compatibility
Match the exact compact remote or compatible remote tandem master-cylinder inlet. This fitting's 11/16-20 thread distinguishes it from the 9/16-18 billet-reservoir adapter used at the other end of some feed arrangements.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
