Product details

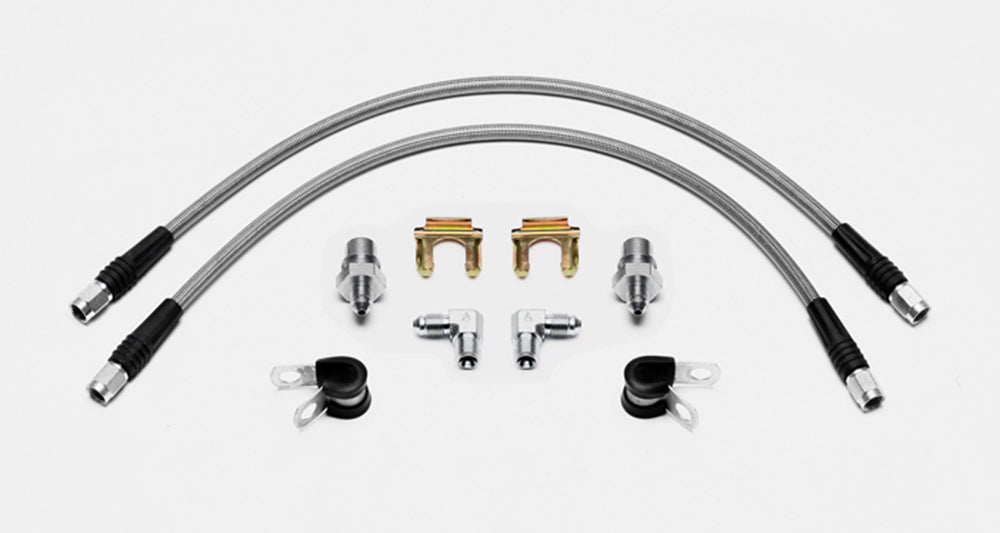

This universal hydraulic kit provides 18-inch hoses with straight -3 female ends and separate adapter fittings. The metric bubble-flare chassis interface and 90-degree NPT caliper connection define its application more precisely than a vehicle make. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 220-13055
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.860 lb
Fitment & Compatibility
Check thread, sealing seat, port angle and full suspension movement on the actual installation. The kit does not assign an axle position or establish direct factory-hose replacement for a particular model.
