Product details

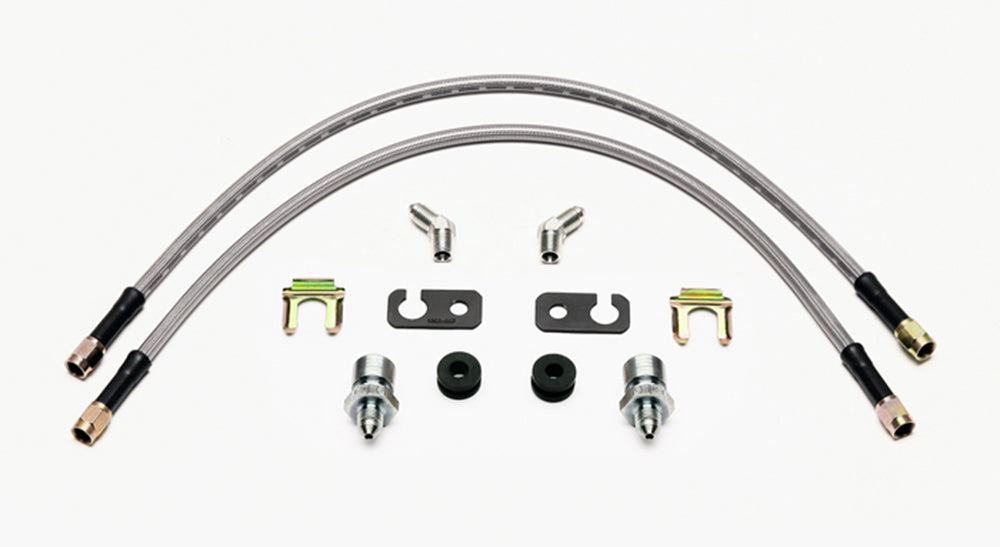

This front Focus line arrangement uses 18-inch straight-ended hoses and a flat-bracket mounting package. Separate metric bubble-flare chassis adapters and 90-degree NPT caliper fittings establish the two hydraulic interfaces. Wilwood Engineering is a designer and manufacturer of disc brake systems and components, founded by Bill Wood in 1977 and based in Camarillo, California. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support its motorsport, street-performance and specialized applications. Each is selected according to the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-13038
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-8361
- Hose quantity: 2
Fitment & Compatibility
The product application identifies the 2013 Ford Focus front conversion; confirm that exact brake kit and its bracket requirements. The manufacturer's current universal description does not establish broader Focus generation coverage.
