Product details

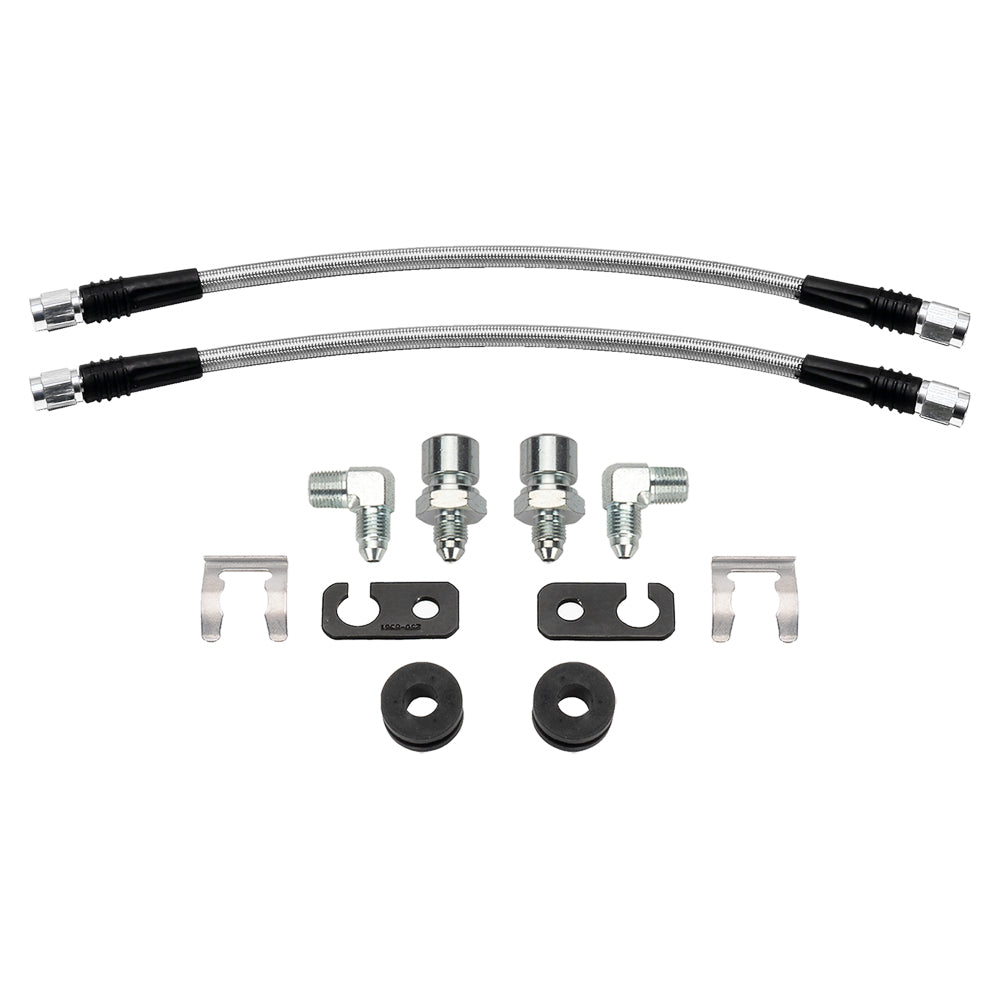

The compact 12-inch line arrangement combines metric inverted-flare chassis adapters with 90-degree caliper elbows and S-bend mounting brackets. It is identified for Cadillac CTS conversion use in the product listing, while the current manufacturer page describes a connection-based universal kit. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.
Technical Details
- Manufacturer part number: 220-13001
- Component: Brake flexline and fitting kit
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Line support reference: 250-8361
- Hose quantity: 2
Fitment & Compatibility
Verify the exact CTS brake conversion and required brackets before purchase; no model-year range is established by the current hose page. The M10 x 1 flare seat and NPT caliper ports must match the installed hardware.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
