Product details

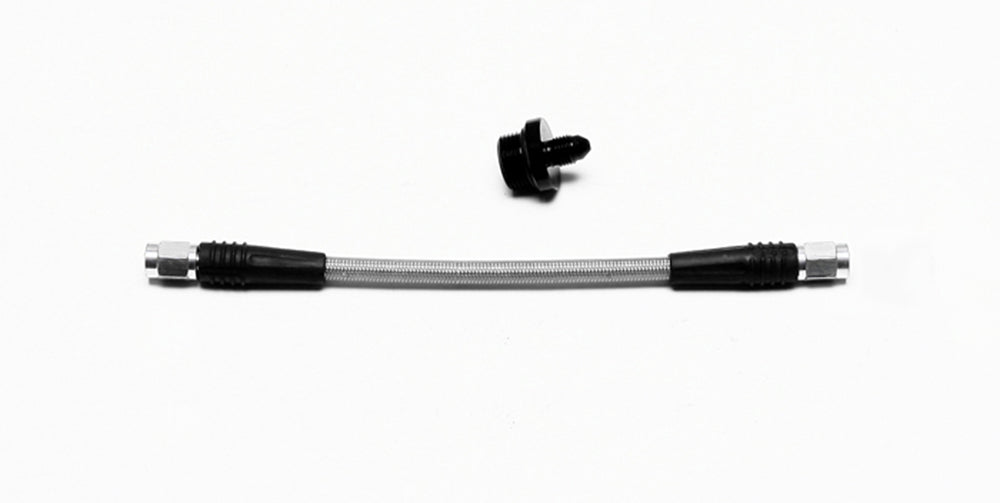

The 8-inch feed line allows a greater reservoir-to-master separation than the shortest kit while retaining straight -3 female hose ends. Wilwood supplies the compatible compact master-cylinder inlet fitting and sealing O-ring with this single-hose package. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 220-12993
- Component: Reservoir-to-master cylinder feed hose kit
- Hose length (inches): 8.00
- Line or fitting size: -3
- Connection specification: 11/16-20 to -3
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Master cylinder adapter angle: Straight
- Inlet adapter: 11/16-20 to male -3 with O-ring
- Master cylinder adapter reference: 220-13130
- Package quantity: 1
Fitment & Compatibility
Match the reservoir outlet adapter and 11/16-20 master-cylinder inlet before choosing the eight-inch route. Provide a supported hose path appropriate to the remote reservoir mounting location.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
