Product details

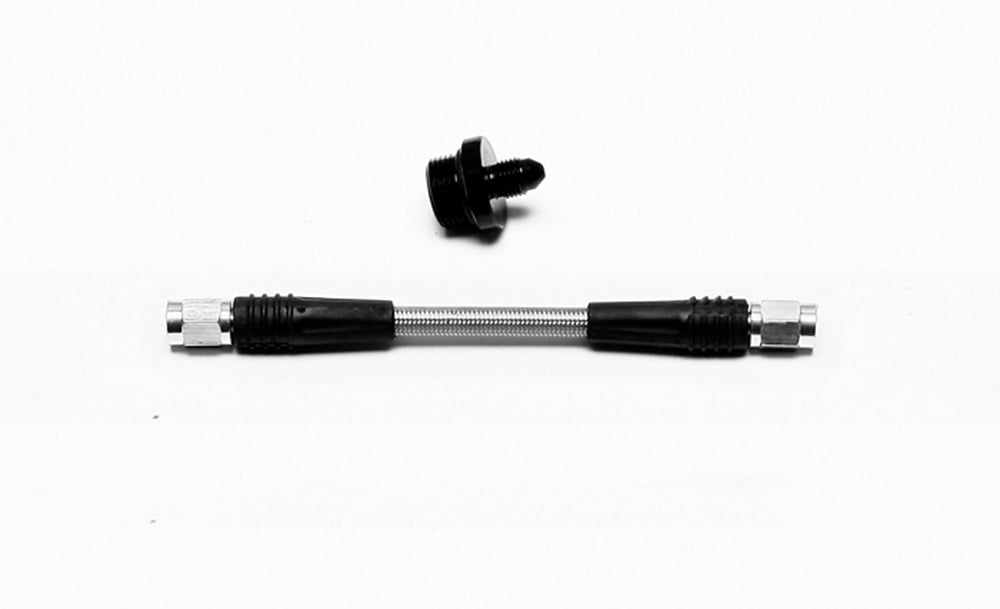

This short reservoir-feed package combines one 6-inch -3 braided hose with the compact remote master-cylinder inlet adapter and its sealing O-ring. It is intended for Wilwood billet reservoir arrangements where a short separated mounting distance is required. Since its founding by Bill Wood in 1977, Wilwood Engineering has developed a range serving motorsport, street-performance and specialized brake applications. Based in Camarillo, California, it designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component should be selected for compatibility with the complete braking system.
Technical Details
- Manufacturer part number: 220-12992
- Component: Reservoir-to-master cylinder feed hose kit
- Hose length (inches): 6.00
- Line or fitting size: -3
- Connection specification: 11/16-20 to -3
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Master cylinder adapter angle: Straight
- Inlet adapter: 11/16-20 to male -3 with O-ring
- Master cylinder adapter reference: 220-13130
- Package quantity: 1
Fitment & Compatibility
Check the master cylinder's 11/16-20 inlet and the reservoir's compatible -3 connection. This is a reservoir-feed connection, so do not identify it as a wheel-end caliper hose solely because both use braided line.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
