Product details

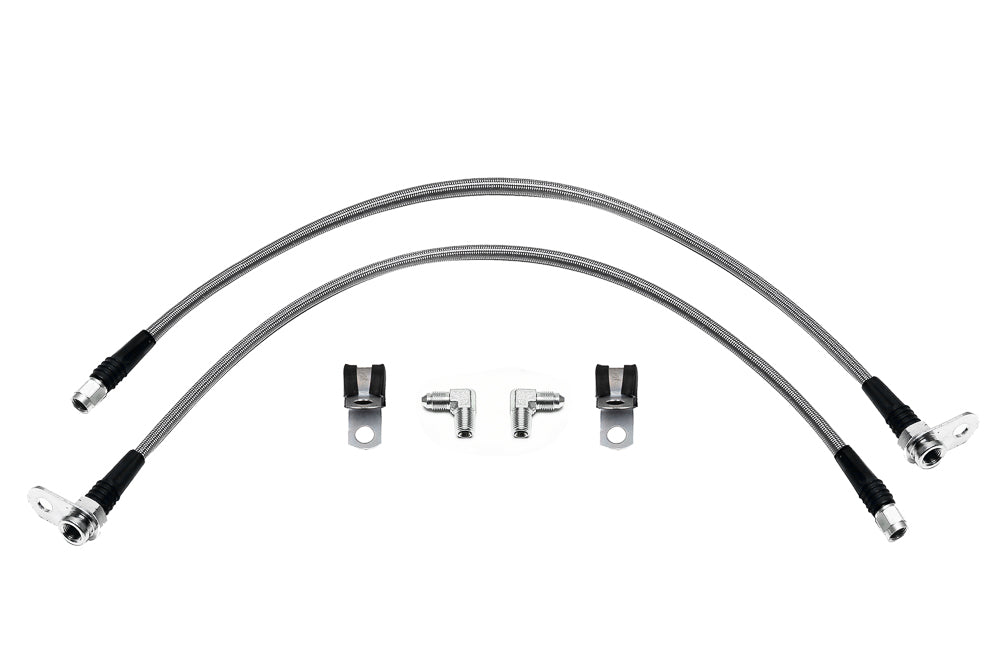

The later Miata front arrangement uses a metric female chassis inlet integrated into each 21-inch hose. Straight outlet ends connect to separate caliper elbows, and the pictured mounting hardware locates the hoses at the specified attachment points. The manufacturer is Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines whose selection must suit the complete brake system.
Technical Details
- Manufacturer part number: 220-12948
- Component: Brake flexline and fitting kit
- Hose length (inches): 21.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Hose quantity: 2
Fitment & Compatibility
Wilwood's application heading identifies the 2006–2012 Mazda Miata. Confirm the particular front conversion and its mounting brackets; the current kit notes begin at 2006 rather than the earlier Miata generation.
