Product details

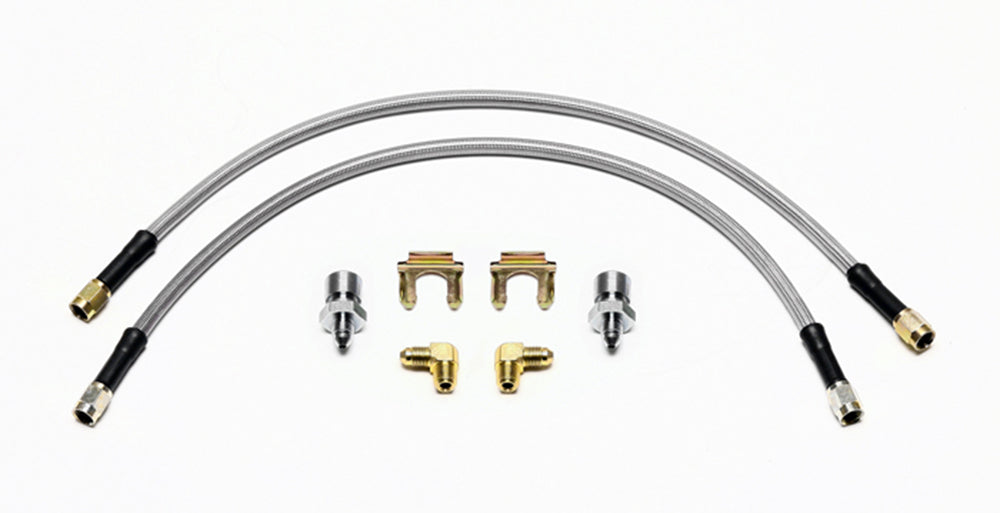

This 18-inch hose pair connects the metric inverted-flare chassis interface to right-angle caliper adapters. Wilwood currently identifies M10 x 1 chassis fittings for the Scion application, so the thread pitch and flare seat need to match the fitted hard line. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.
Technical Details
- Manufacturer part number: 220-12862
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.850 lb
Fitment & Compatibility
Confirm the specific Scion model and conversion from the brake-kit instructions; the hose page names the make without individual models. Do not substitute an M10 x 1.5 adapter where the specified M10 x 1 fitting is required.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
