Product details

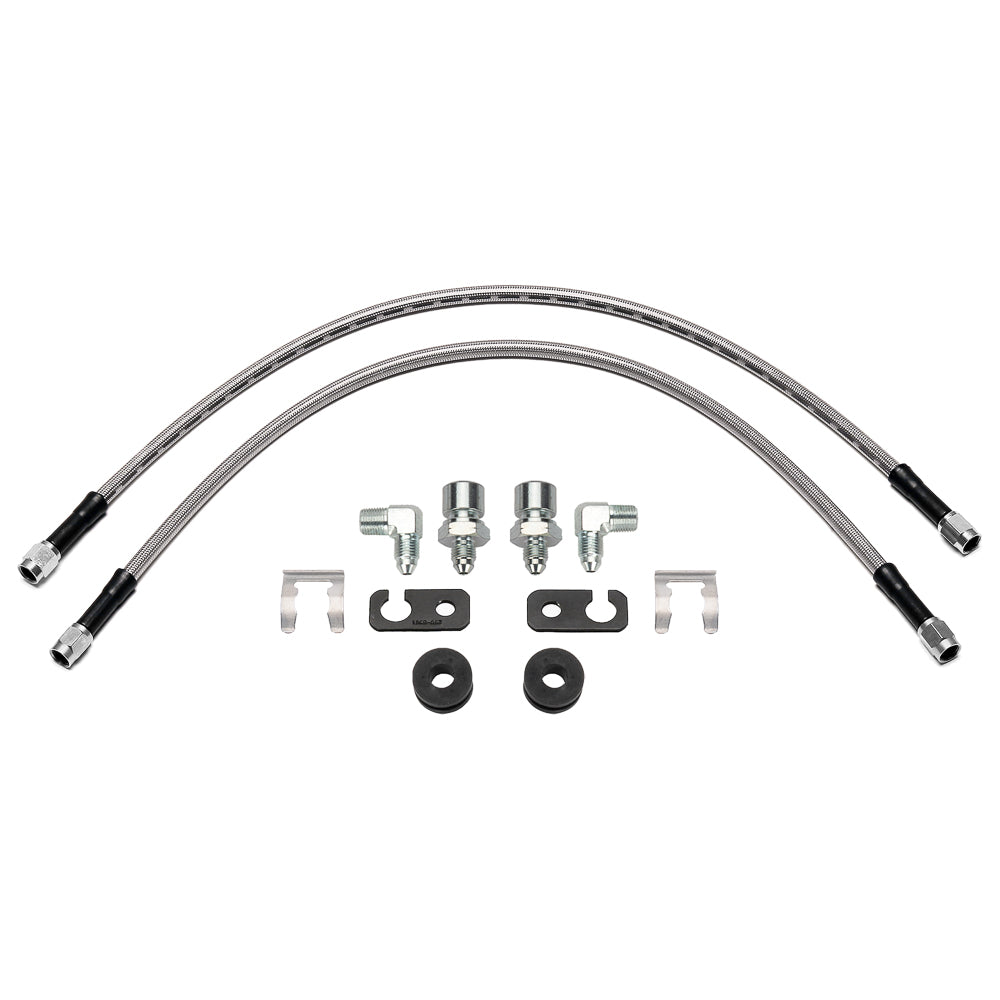

The rear WRX hose kit turns the caliper connection through 90 degrees while retaining straight hose ends. Two 20-inch lines connect through metric inverted-flare chassis adapters, with the rear mounting arrangement checked against the conversion. Wilwood Engineering's range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to meet the needs of a complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, designing and manufacturing disc brake systems for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-12861
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 0.900 lb
Fitment & Compatibility
Use the rear WRX installation identified by Wilwood's 1999–2012 kit notes. Confirm caliper-port thread and chassis flare type, since the front hose package uses a different caliper-adapter angle.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
