Product details

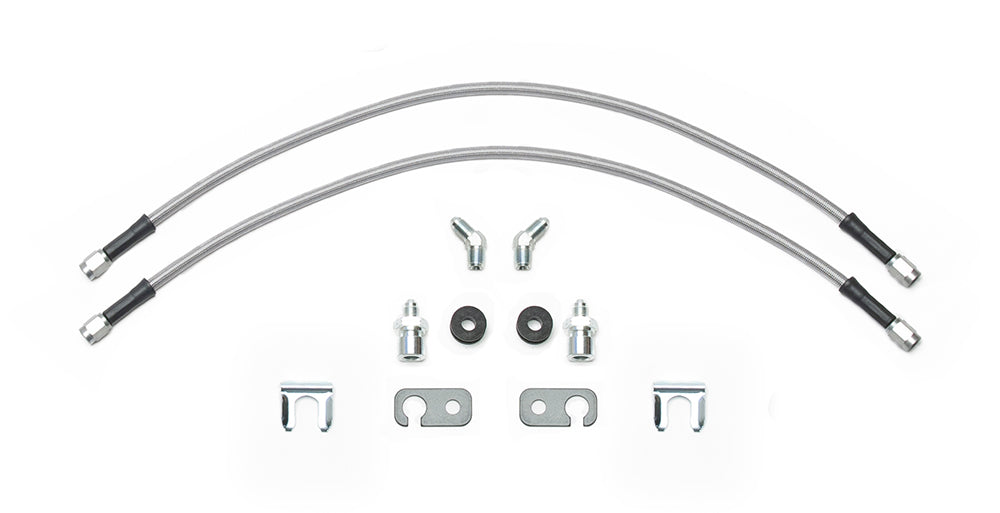

The WRX front package uses 45-degree caliper adapters with 20-inch hoses. Metric M10 x 1 inverted-flare chassis fittings join the straight hose ends, while the mounting hardware locates the line for the specified conversion. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.
Technical Details
- Manufacturer part number: 220-12857
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 0.850 lb
Fitment & Compatibility
Wilwood's current kit notes cover the 1999–2012 WRX conversion family. Confirm the market, generation and actual brake package; that range does not mean every WRX version shares the same original hose arrangement.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
