Product details

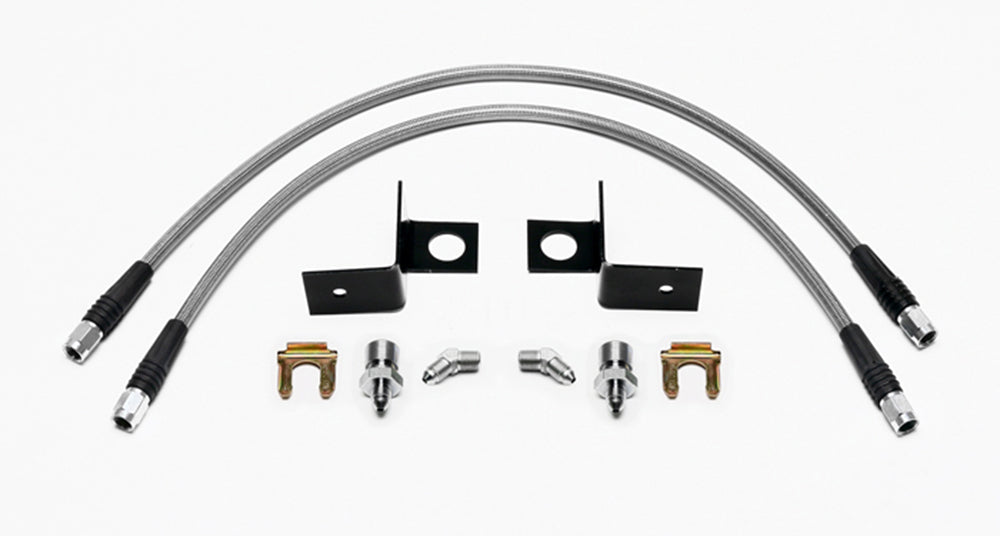

The two-wheel-drive F-150 front package uses 20-inch hoses with separate 45-degree caliper adapters. Its bracket arrangement and 3/8-24 inverted-flare chassis fittings are identified for the listed truck conversion. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-12834
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-12864 / 250-12865
- Hose quantity: 2
- Listed weight: 1.050 lb
Fitment & Compatibility
For the specified 1997–2003 Ford F-150 2WD installation. Do not transfer the application to a 4WD suspension or another front brake kit without checking its instructions and hose attachment points.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
